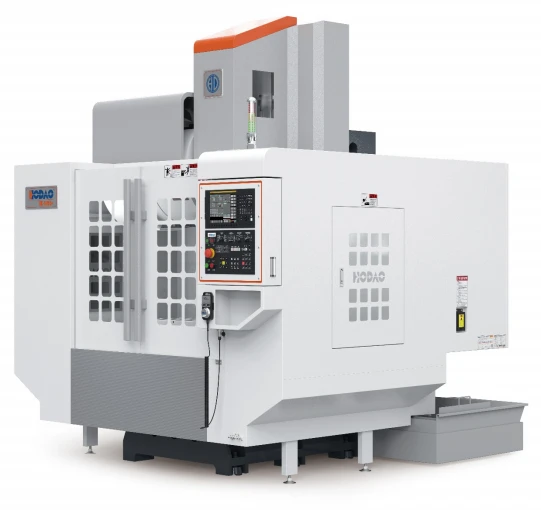

High Speed Vertical Machining Center

Conventional vertical machining centers often waste time moving between cuts. This high speed model attacks that inefficiency directly. With 48 m/min rapids on X, Y, and Z, it spends less time repositioning and more time removing metal. Travels are 800 mm on X, 550 mm on Y, and 550 mm on Z. Worktable measures 1000 by 550 mm and supports up to 600 kg. Three spindle configurations are available: belt drive at 10,000 rpm, direct drive at 12,000 rpm, or motor spindle at 15,000 rpm. Taper is BT40; HSK‑A63 optional. Spindle power reaches 11, 15, or 18.5 kW, delivering 118 Nm torque. Mold shops, automotive suppliers, and 3C component manufacturers benefit most.

Send Inquiry

Product Introduction

Standard VMCs waste too much time moving between cuts. This model solves that. Rapids 48 m/min on X, Y, Z. Travels: X800, Y550, Z550 mm. Table 1000×550 mm, load 600 kg. Spindle options: belt 10k, direct 12k, motor 15k rpm. Taper BT40 (HSK‑A63 optional). Power 11/15/18.5 kW, torque 118 Nm.

Specifications

Parameter	Unit	HD-VF85+
Machining Range
X-axis travel (left-right)	mm	800
Y-axis travel (front-back)	mm	550
Z-axis travel (up-down)	mm	550
Distance from spindle nose to table surface	mm	120-670
Distance from spindle center to column guideway surface	mm	612
Worktable Specifications
*Worktable size (XY direction)**	mm	1000×550
Worktable T-slot size	mm	18T×5×90
Max. worktable load	kg	600
Spindle Specifications
Spindle taper	spec.	BT40 (HSK-A63)
Spindle speed	rpm	Belt 10000 / Direct 12000 / Motor spindle 15000
Spindle motor power - torque	spec.	11/15/18.5 kW - max. torque 118 Nm
Spindle bearing arrangement	spec.	Mechanical spindle: 7014×4 pieces/set; bearing ID 70 mm; Motor spindle: 7013×2 / 7010×2; bearing ID 65/50 mm; steel balls for ≤10000 rpm, ceramic balls for ≥12000 rpm
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	48/48/48
G01 cutting feed (X/Y/Z axis)	m/min	0-10
Three-axis ballscrew specification	mm	THK ballscrew JIS C3 class; 40×P16
Three-axis guideway specification	spec.	Roller: THK-HRX; X/Y/Z: 35/45/45 type linear guideways; Z-axis six-slider configuration
Three-axis motor specification (X/Y/Z axis)	spec.	Million-pulse high-resolution servo motor; 3/3/3 kW
Tool Magazine System
Tool magazine capacity	pcs.	Disc-type with tool arm 24T (32T / 32T×2) tool magazine
Machine Parameters
Positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions (width/depth/height)	mm	2580×2740×2940
Approx. machine weight	t	5.4

Scope of Application

Box parts, flat plates, housings, and irregular workpieces all run faster on this machine. Precision milling, drilling, tapping, and 3D contouring are standard. It works equally well in job shops that need quick changeovers and in fully automated cells running around the clock.

Equipment Manufacturing Process

The warranty lasts 12 months from the machine's arrival date. During this period, Hodao provides free repair for any defects in materials or workmanship. The warranty does not cover damage caused by crashes, improper operation, unauthorized repair or modification, or failure to follow maintenance guidelines. After the warranty period ends, Hodao continues to offer lifetime maintenance support. Spare parts and labor are charged at standard rates. The machine's ownership remains with Hodao until full payment is received.

Operator Training Options

Training is provided in two ways. Option one: on-site training at the customer's facility, conducted immediately after installation. This covers daily operation, basic programming, and routine maintenance. Hodao covers travel and accommodation. Option two: factory training at Hodao's facility in Suzhou, scheduled after contract signing. This lasts up to five days and covers advanced CNC programming, system diagnostics, and preventive maintenance. The customer pays for travel and accommodation. For both options, the customer provides a free working lunch each day.

About Us

Hodao CNC Technology builds high‑speed vertical machining centers, gantry machines, horizontal mills, and drill tap centers. Company operates two factories in Suzhou (30 mu) and Anhui (40 mu), serving precision mold, automotive, 3C electronics, 5G communication, and aerospace industries.12‑month warranty and lifetime technical support come standard. Hodao focuses on giving customers cost‑effective machines that solve real production problems, especially where cycle time matters.

FAQ

Q1. How does operator training work for this high‑speed model?

A: We offer two options. On‑site training happens one day after installation and covers basic operation and daily maintenance. We pay travel and accommodation. Factory training lasts up to five days after the contract is signed and covers CNC programming, fault diagnosis, and machine care. The customer pays travel and accommodation. In both cases, the customer provides a free working lunch.

Q2. What is covered under warranty and for how long?

A: The warranty lasts 12 months from the day the machine arrives. Free repair covers manufacturing defects. If the user causes damage through crashes, improper use, or unauthorized modification, repairs are paid. After the warranty period ends, we continue to provide service for spare parts and labor costs. Lifetime maintenance support is available. Ownership of the machine stays with us until the customer pays in full.

Q3. Why is this machine faster than standard models?

A: The answer has three parts. First, travel distances are moderate (800, 550, and 550 mm), so moving components are lightweight. Second, low‑friction 35/45/45 roller guideways reduce resistance. Third, the servo motors are tuned specifically for rapid response. Together, these features cut non‑cutting time significantly, which matters most when machining aluminum alloys and composites at high speeds.
