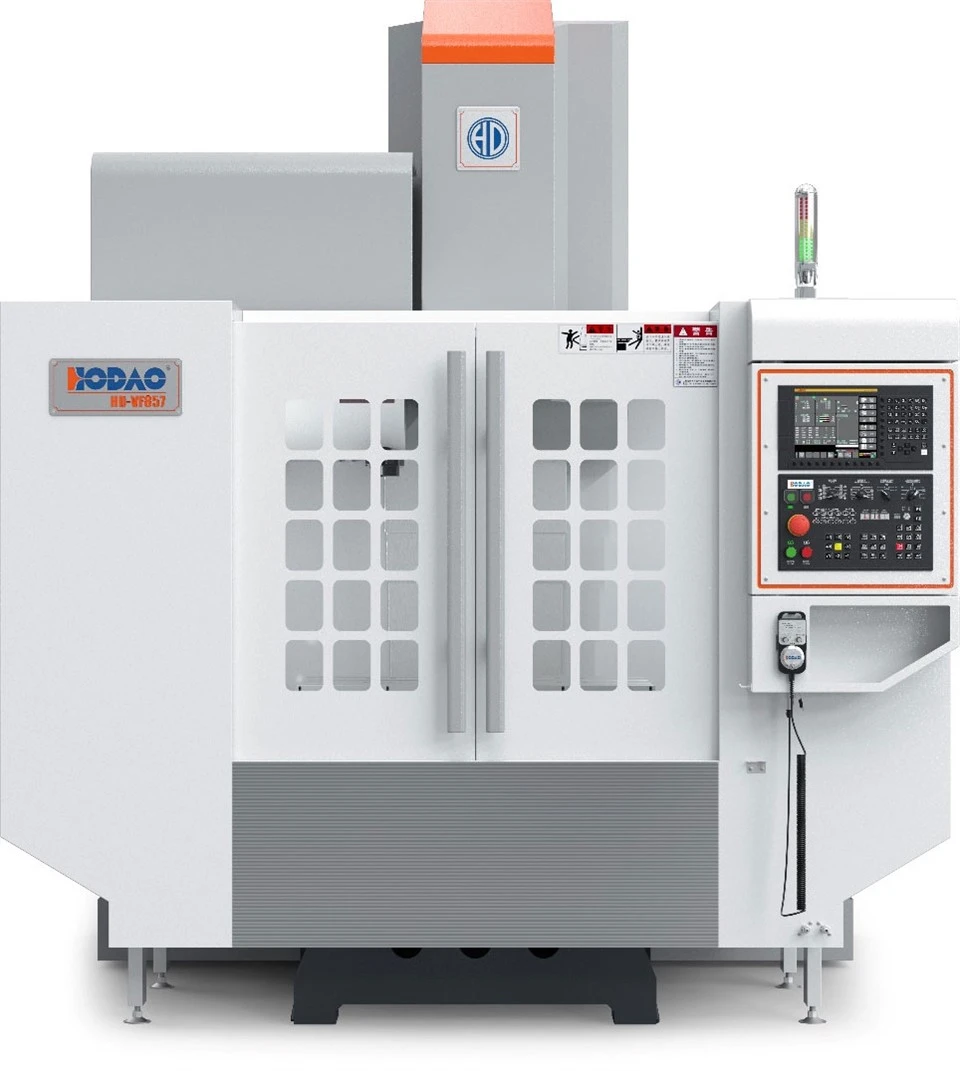

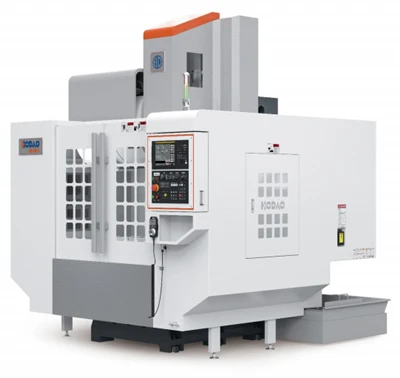

High Performance Vertical Machining Center
This model combines a solid bed with modern drive systems. The tall column and one‑piece base give high static and dynamic stiffness. All three axes move at 30 m/min rapid, with cutting feed 0‑10 m/min. The 11/15 kW spindle motor delivers 96 Nm torque, balancing high-speed finishing with moderate material removal. The armless disc tool changer swaps tools reliably. Laser and ballbar calibration guarantee positioning ±0.005/300 mm and repeatability ±0.003/300 mm. As smart manufacturing grows, HD-VF857 continues to improve efficiency and part consistency.
Specifications
|
Parameter |
Unit |
HD-VF857 |
|
Machining Range |
||
|
X-axis travel (left-right) |
mm |
800 |
|
Y-axis travel (front-back) |
mm |
550 |
|
Z-axis travel (up-down) |
mm |
700 |
|
Distance from spindle nose to table surface |
mm |
150-850 |
|
Distance from spindle center to column guideway surface |
mm |
612 |
|
Worktable Specifications |
||
|
Worktable size (X*Y direction) |
mm |
1260*550 |
|
Worktable T-slot size |
mm |
18T*5*90 |
|
Max. worktable load |
kg |
600 |
|
Spindle Specifications |
||
|
Spindle taper |
spec. |
BBT40 |
|
Spindle speed |
rpm |
Direct-drive 12000 |
|
Spindle motor power - torque |
spec. |
0iMF:11/15kW - max. torque 96Nm |
|
Spindle bearing arrangement |
spec. |
Mechanical spindle: 7014*4 pieces/set; bearing ID 70mm; ceramic balls for 12000rpm and above |
|
Feed System |
||
|
G00 rapid traverse (X/Y/Z axis) |
m/min |
30/30/30 |
|
G01 cutting feed (X/Y/Z axis) |
m/min |
0-10 |
|
Three-axis ballscrew specification |
mm |
JIS C3 class; 40 * P10 |
|
Three-axis guideway specification |
spec. |
Roller: X/Y/Z 35/45/45 type linear guideways; Z-axis six-slider configuration |
|
Three-axis motor specification (X/Y/Z axis) |
spec. |
Million-pulse high-resolution servo motor; 3/3/3kW |
|
Tool Magazine System |
||
|
Tool magazine capacity |
pcs. |
Disc-type armless 24T tool magazine |
|
Machine Parameters |
||
|
Positioning accuracy |
mm |
JIS: ±0.005 / any 300mm of travel |
|
Repeatability |
mm |
JIS: ±0.003 / any 300mm of travel |
|
Overall dimensions (width/depth/height) |
mm |
2680*2740*3120 |
|
Approx. machine weight |
t |
5.7 |
Scope of Application
High‑mix, high‑volume production of boxes, plates, housings, and irregular parts requiring precision milling, drilling, and 3D contouring. Performs well in job shops and automated cells.
Equipment Manufacturing Process
Foundation – Customer pours concrete at least 300 mm thick (no rebar) per our drawing, away from vibration and temperature changes.
Utilities – Customer provides 380V three‑phase power and clean dry air (filtration ≤100 μm). A voltage stabilizer and air dryer are optional but recommended.
Machine arrival – Joint unpacking inspection. Customer does rough leveling and mechanical positioning. Our engineers then fine‑tune, calibrate, and conduct one day of on‑site operator training.
Acceptance – We notify customer 30 days before shipment for pre‑acceptance at our factory. Final acceptance on‑site includes checking accessories, running performance tests, and verifying accuracy with customer's own measuring tools. Any test not possible on‑site can be done at our factory.
Shipment – After balance payment, machine is rust‑proofed, packed in a wooden case, and shipped. An engineer accompanies to finalize leveling and provide training.
About Us
Hodao CNC Technology is a high‑tech enterprise focused on R&D and production of CNC machine tools. Its main products are vertical, gantry, horizontal, drilling/tapping, and engraving/milling machines. The company serves precision mold, automotive, 3C electronics, 5G communication, and aerospace industries. Hodao is committed to offering cost‑effective, customer‑oriented solutions with continuous innovation.
FAQ
Q1. How is training arranged?
A: On‑site training (1 day after installation, covering basic operation and maintenance) – travel and accommodation at our expense. Factory training (up to 5 days after contract, covering CNC operation, maintenance, fault diagnosis, programming) – travel and accommodation at customer's expense. Customer provides free working lunch.
Q2. Warranty policy?
A: 12 months free from arrival date. User damage requires paid repair. After warranty, service continues with parts and labor charges. Lifetime maintenance. Ownership remains with us until full payment.
Q3. Why are rapids all 30 m/min?
A: Uniform speed eliminates acceleration mismatches during three‑axis interpolation, reducing path deviation in 3D contouring and shortening non‑cutting time, especially for high‑speed machining of aluminum and composites. The 35/45/45 guideway combination and 3 kW servos are tuned for this balance.
Hot Tags: high performance vertical machining center, China high performance vertical machining center manufacturers, suppliers, factory
