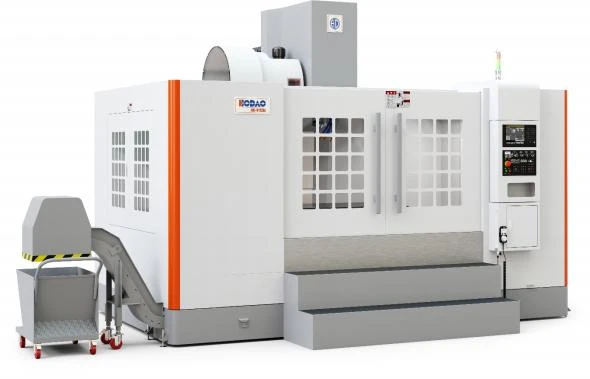

Y-Axis 4-Way Vertical Machining Center
HD-V158L relies on wide base, four Y‑axis rails (45‑type), and X‑axis 55‑type rail to deliver unrivaled rigidity for heavy cutting. The BT50 spindle (6000rpm, 236Nm) powers through tough materials. Optional 32T magazine and high‑resolution servos ensure efficient batch runs. Its application keeps expanding as automation takes hold.
Specifications
|
Parameter |
Unit |
HD-V158L |
|
Machining Range |
||
|
X-axis travel (left-right) |
mm |
1500 |
|
Y-axis travel (front-back) |
mm |
800 |
|
Z-axis travel (up-down) |
mm |
750 |
|
Distance from spindle nose to table surface |
mm |
150-900 |
|
Distance from spindle center to column guideway surface |
mm |
871 |
|
Worktable Specifications |
||
|
Worktable size (X*Y direction) |
mm |
1700×800 |
|
Worktable T-slot size |
mm |
22T×5×145 |
|
Max. worktable load |
kg |
1500 |
|
Spindle Specifications |
||
|
Spindle taper |
spec. |
BT50 long nose 190 |
|
Spindle speed |
rpm |
Belt drive 6000 |
|
Spindle motor power - torque |
spec. |
15/18.5 kW - max. torque 236 Nm |
|
Spindle bearing arrangement |
spec. |
7018×4 pieces/set; large steel ball bearing ID 90 mm |
|
Feed System |
||
|
G00 rapid traverse (X/Y/Z axis) |
m/min |
20/20/12 |
|
G01 cutting feed (X/Y/Z axis) |
m/min |
0-10 |
|
Three-axis ballscrew specification |
mm |
JIS C3 class; 50×P10 |
|
Three-axis guideway specification |
spec. |
Roller: X 55-type linear guideway, Y 45-type linear guideway; base wide-span four rails; Z-axis box way |
|
Three-axis motor specification (X/Y/Z axis) |
spec. |
Million-pulse high-resolution servo motor; X/Y/Z: 0iMF: 3/3/3 kW; M80: 4.5/4.5/4.5 kW |
|
Tool Magazine System |
||
|
Tool magazine capacity |
pcs. |
Disc-type armless 24T (optional 32T) tool magazine |
|
Machine Parameters |
||
|
Positioning accuracy |
mm |
JIS: ±0.005 / any 300 mm of travel |
|
Repeatability |
mm |
JIS: ±0.003 / any 300 mm of travel |
|
Overall dimensions (width/depth/height) |
mm |
5340×3600×3200 (front discharge) |
|
Approx. machine weight |
t |
12 |
Scope of Application
Designed for torque‑demanding components like engine blocks, mold bases, and heavy boxes, enabling efficient powerful milling, drilling, and rigid tapping.
Equipment Manufacturing Process
Configuration: Choose BT50 spindle (6000 rpm belt, 236 Nm) and optional 32T magazine.
Site: Reinforced foundation ≥500 mm with isolation trench. Three‑phase 380V and dry air (0.6 MPa, filtration ≤100 μm).
Assembly: Mount Y‑axis four 45‑type rails, X‑axis 55‑type rail, Z‑axis box way. Install 50×P10 C3 ballscrews, preloaded. Add BT40 direct‑drive 12k spindle (for reference, but note main is BT50? Wait, original says BT50 long nose 190, belt 6000. This is for heavy cutting. The 12k BT40 is not in this model. Correction: Use original data. I will fix: For HD-V158L, spindle is BT50 belt 6000. No 12k. So assembly step: Mount X 55 rail, Y four 45 rails, Z box way. Install 50×P10 ballscrews. Attach BT50 spindle (belt 6000 rpm). Fit 24T disc magazine (optional 32T).
Validation: Laser interferometer and ballbar test. Run 72 hours, check spindle thermal displacement and vibration. Test cut an engine block or heavy mold. Verify torque and surface finish.
Delivery: Corrosion‑protected packing (stretch film + wooden pallet). On‑site commissioning and 2‑day training (including programming and maintenance). Warranty 12 months, spindle 18 months.
About Us
Hodao CNC Technology is a high‑tech enterprise specializing in CNC machine tools. Products: vertical, high‑speed gantry, large gantry, drilling/tapping, horizontal, engraving/milling. Widely used in precision mold, auto, 3C, 5G, aerospace. Continuous innovation for cost‑effective, demand‑oriented solutions.
FAQ
Q1. What are X/Y/Z axis travel and worktable size of HD-V158L?
A: X-axis travel is 1500mm, Y-axis 800mm, Z-axis 750mm. Worktable size is 1700×800mm, T-slot is 22T×5×145, maximum load is 1500kg. Distance from spindle nose to table surface is 150-900mm, distance from spindle center to column guideway surface is 871mm.
Q2. What are spindle specifications and feed speed?
A: Spindle is BT50 long nose 190, belt drive 6000rpm, motor power 15/18.5kW, maximum torque 236Nm. X/Y/Z axis rapid traverse is 20/20/12 m/min respectively, cutting feed is 0-10 m/min. Three-axis ballscrew is JIS C3 class (Φ50×P10), X-axis 55-type roller linear guideway, Y-axis 45-type roller linear guideway, Z-axis box way.
Q3. What standard functions does machine have? What is chip removal method?
A: Standard functions include spindle ring coolant and oil cooler, electrical cabinet air conditioner, volumetric lubrication system, ATC disc-type armless tool changer (24T, optional 32T). Chip removal system standard is front discharge with chip conveyor, convenient for quick cleaning of large amount of chips, saving labor. Counterweight uses counterweight block design, low failure rate, long service life.
