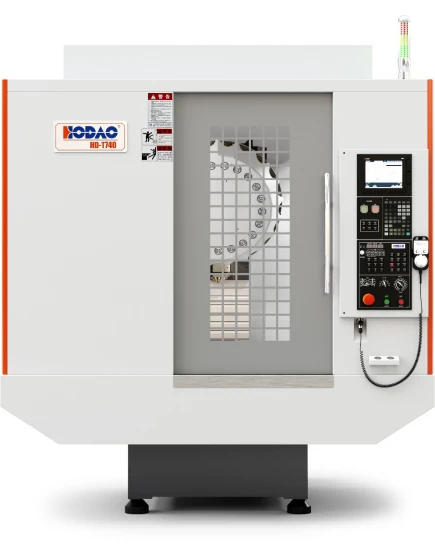

Drill Tap Machine

Drill Tap Machine is designed for high-speed drilling, tapping, and light milling of small components in 3C electronics, 5G communication, new energy three-electric systems, and similar industries. X/Y/Z axis travel is 700/400/350mm, worktable size 800×420mm, load capacity 300kg. Standard BT30 direct-drive spindle runs at 20000rpm (optional 12000rpm high torque or 24000rpm ultra-high speed). Three-axis rapid traverse is 48m/min with fast acceleration response, particularly suitable for precision batch machining of metal and aluminum alloy parts.

Send Inquiry

Product Introduction

Machine adopts mountain-rib and torque tube reinforced bed, three-axis ball linear guideways (X/Y 30-type, Z 35-type), combined with C3 class precision ballscrew (32×P16), pre-stretched to eliminate thermal elongation. Standard Beiju servo umbrella-type 21T tool magazine features fast tool selection and taper shank blow-off function during tool change, effectively preventing chip residue. Spindle has built-in oil cooling system, standard rear flushing chip removal, optional electrical cabinet air conditioner. Positioning accuracy ±0.005/300mm, repeatability ±0.003/300mm. Overall machine dimensions 2035×2440×2740mm, total weight approx. 3t, small footprint.

Specifications

Parameter	Unit	HD-T740
Machining Range
X-axis travel (left-right)	mm	700
Y-axis travel (front-back)	mm	400
Z-axis travel (up-down)	mm	350
Distance from spindle nose to table surface	mm	145-495
Distance from spindle center to column guideway surface	mm	445
Worktable Specifications
*Worktable size (XY direction)**	mm	800×420
Worktable T-slot size	mm	14T×3×125
Max. worktable load	kg	300
Spindle Specifications
Spindle taper	spec.	BT30
Spindle speed	rpm	Standard direct-drive high speed 20000; Optional high torque 12000; Optional ultra-high speed 24000
Spindle motor power - torque	spec.	Standard 20000rpm: 3.7/5.5 kW; Optional 12000rpm: 5.5/7.5 kW; Optional 24000rpm: 2.2/3.7 kW
Spindle bearing arrangement	spec.	7008×4 pieces/set; bearing ID 40 mm; ceramic balls for 20000rpm, steel balls for 12000rpm
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	48/48/48
G01 cutting feed (X/Y/Z axis)	m/min	0-10
Three-axis ballscrew specification	mm	JIS C3 class; 32×P16
Three-axis guideway specification	spec.	High-speed ball: X/Y 30-type linear guideways, Z-axis 35-type linear guideway
Three-axis motor specification (X/Y/Z axis)	spec.	0iMF: 2.5/2.5/2.7 kW; M80V: 1.5/2/3 kW
Tool Magazine System
Tool magazine capacity	pcs.	Umbrella-type 21T tool magazine
Tool magazine drive	spec.	Servo fast drive
Machine Parameters
Positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions (width/depth/height)	mm	2035×2440×2740
Approx. machine weight	t	3

Scope of Application

Suitable for high-volume high-speed drilling, tapping, and rigid tapping of small precision parts such as 5G communication cavities, new energy electronic control boxes, mobile phone middle frames, heat sinks, and medical devices. Also suitable for high-speed milling of aluminum alloy thin-walled parts.

Equipment Manufacturing Process

01/

Step 1: Process solution matching – Based on customer workpiece material (aluminum alloy, magnesium alloy, small stainless steel parts) and production volume, determine spindle speed (standard 20000rpm or optional 24000rpm) and fixturing solution (pneumatic vise, vacuum chuck, etc.). Output customized quotation and delivery time.

02/

Step 2: Contract and site preparation – After contract signing, customer constructs foundation per drawing (C30 concrete, thickness ≥500mm, simplified), pre-installs three-phase 380V stabilized power supply (wire gauge ≥10mm²) and 0.6MPa clean air source (including filter-regulator-lubricator). Our side simultaneously procures Taiwan-made BT30 spindle, THK ballscrews/guideways, and servo tool magazine.

03/

Step 3: Modular assembly and accuracy testing – Use constant-temperature workshop for assembly. Machine guideway mounting surfaces on bed and column in single clamping. Assemble X/Y/Z axis ball linear guideways and ballscrews, preload to eliminate backlash. Install direct-drive spindle and 21T umbrella tool magazine, debug tool change blow-off air pressure. After machine completion, use laser interferometer to compensate three-axis positioning error, use ballbar to detect roundness.

04/

Step 4: High-speed performance verification – Run no-load continuously for 48 hours (spindle speed 20000rpm), monitor spindle temperature rise and vibration. Use typical part provided by customer (e.g., 5G cavity) for drilling and tapping test, inspect thread go/no-go gauge.

05/

Step 5: Customer acceptance and shipment – Customer visits factory or watches test cut via video. After acceptance, customer pays remaining balance. Apply anti-rust treatment, pack in wooden case, and ship. Engineer performs on-site installation, leveling, and provides 1-day operation and maintenance training (including tool magazine parameter adjustment, common alarm handling). Complimentary wear parts kit (belt, seal ring, blow-off nozzle) and electronic operation manual are included.

About Us

Hodao CNC Technology focuses on R&D and manufacturing of high-speed drill tap centers and vertical machining centers, with two production bases in Suzhou and Anhui, annual production capacity exceeding 600 units. Company has supplied thousands of drill tap centers to leading enterprises such as Foxconn and BYD for machining of mobile phone metal housings and 5G base station parts. All machines pass 72-hour continuous run-in test and Renishaw laser inspection, and come with 12-month warranty and lifetime technical consultation.

FAQ

Q1. How to choose between standard 20000rpm spindle and optional 24000rpm spindle?

A: 20000rpm spindle has moderate torque (approx. 20Nm), suitable for aluminum alloy drilling and tapping threads below M6. 24000rpm spindle is suitable for micro holes (Φ<3mm) and high-gloss milling, but low-speed torque is slightly weaker. Selection depends on common tool diameter and material.

Q2. What is tool change time of servo umbrella-type tool magazine?

A: Tool-to-tool change time is approx. 1.8 seconds. Magazine disc is driven by servo motor, providing fast random tool selection. Combined with taper shank blow-off, it keeps tool holder clean and reduces spindle wear.

Q3. What is machine's compressed air flow requirement?

A: Dry air of no less than 300L/min is required. Otherwise, insufficient blow-off pressure may cause chip adhesion to tool holder taper bore. Customer is advised to install oil-water separator at air source inlet (optional, available from our side).
