General Vertical Machining Center

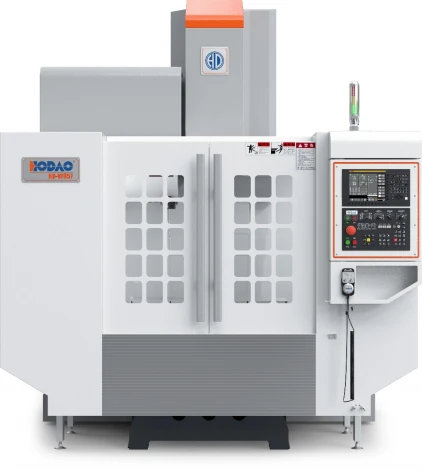

A shop that machines molds in the morning and automotive brackets in the afternoon needs one machine that can handle both. This general purpose vertical machining center fills that role. X travel 800 mm, Y 550 mm, Z 700 mm. Table 1260×550 mm, load 600 kg. Three spindle options: belt 10k, direct 12k, or motor 15k rpm. Taper BT40 (HSK‑A63 optional).

Send Inquiry

Product Introduction

Rigidity comes from three features: ribbed bed, torque tube column, and wide base. Z axis has six sliders on 45‑type roller guides. X/Y run on 35/45/45 roller guides. Ballscrews JIS C3, 40 mm dia., 16 mm pitch. Rapids 48 m/min on all axes, feed 0‑10 m/min. Motor choices: FANUC 0iMF (11/15 kW, 96 Nm) or Mitsubishi M80V (7.5/11/15 kW, 96 Nm). Tool magazine disc‑type armless 24T (optional 32T/dual 32T). Positioning ±0.005/300 mm, repeatability ±0.003/300 mm. Machine dimensions 2680×2740×3120 mm, weight 5.7T.

Specifications

Parameter	Unit	HD-VF857
Machining Range
X-axis travel (left-right)	mm	800
Y-axis travel (front-back)	mm	550
Z-axis travel (up-down)	mm	700
Distance from spindle nose to table surface	mm	150-850
Distance from spindle center to column guideway surface	mm	612
Worktable Specifications
*Worktable size (XY direction)**	mm	1260×550
Worktable T-slot size	mm	18T×5×90
Max. worktable load	kg	600
Spindle Specifications
Spindle taper	spec.	BT40 (HSK-A63)
Spindle speed	rpm	Belt 10000 / Direct 12000 / Motor spindle 15000
Spindle motor power - torque	spec.	0iMF: 11/15 kW - max. torque 96 Nm; M80V: 7.5/11/15 kW - max. torque 96 Nm
Spindle bearing arrangement	spec.	Mechanical spindle: 7014×4 pieces/set; bearing ID 70 mm; Motor spindle: 7013×2 / 7010×2; bearing ID 65/50 mm; steel balls for ≤10000 rpm, ceramic balls for ≥12000 rpm
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	48/48/48
G01 cutting feed (X/Y/Z axis)	m/min	0-10
Three-axis ballscrew specification	mm	JIS C3 class; 40×P16
Three-axis guideway specification	spec.	Roller: X/Y/Z 35/45/45 type linear guideways; Z-axis six-slider configuration
Three-axis motor specification (X/Y/Z axis)	spec.	Million-pulse high-resolution servo motor; 0iMF: 1.8/1.8/3 kW; M80V: 2/2/3 kW
Tool Magazine System
Tool magazine capacity	pcs.	Disc-type with tool arm 24T (32T / 32T×2) tool magazine
Machine Parameters
Positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions (width/depth/height)	mm	2680×2740×3120
Approx. machine weight	t	5.7

Scope of Application

Job shops and automated cells. Boxes, plates, housings, irregular shapes. High‑mix, high‑volume milling, tapping, 3D contouring.

Equipment Manufacturing Process

The customer is responsible for preparing a foundation (a 300mm minimum concrete slab without steel reinforcement, away from vibration/temperature changes) and providing 380V three-phase power and clean, dry compressed air (filtered to 100 microns). Upon delivery, a joint inspection is performed. The customer handles rough leveling, after which our engineers arrive for fine-tuning, full Renishaw laser calibration, and a one-day on-site operator training.

About Us

Hodao CNC Technology manufactures vertical machining centers, high-speed gantry machining centers, large-stroke gantry machining centers, high-speed drilling and tapping machines, horizontal machining centers, and engraving milling machines. Products are widely used in precision mold manufacturing, automotive parts, precision part processing, and aerospace. Every machine undergoes 72‑hour continuous operation test before delivery. Warranty period is 12 months with lifetime maintenance support.

FAQ

Q1. What advantage does the torque tube column design provide during heavy cutting operations?

A: The torque tube column is a key structural feature of the HD-VF857. Unlike a standard open-section column, the torque tube design creates a closed, box-like structure that resists both bending and torsional forces. During heavy cutting, this means less deflection at the spindle nose, which directly translates to better surface finish and longer tool life. The torque tube works together with the rib-reinforced bed and the six-slider Z-axis configuration to transfer cutting vibrations away from the cutting zone and into non-critical areas of the machine base. For customers machining steel, cast iron, or hard alloys, this added rigidity allows for more aggressive depth of cut without sacrificing accuracy.

Q2. How long is the warranty and what does it cover?

A: Twelve months from the machine arrival date. Free repair covers manufacturing defects. User‑caused damage from crashes, improper use, or unauthorized modification requires paid repair. After the warranty expires, service continues with spare parts and labor charges. Lifetime maintenance support is available. Ownership remains with us until full payment is cleared.

Q3. What spindle speed choices exist?

A: Three configurations: belt drive at 10,000 rpm for general purpose, direct drive at 12,000 rpm for higher speed, or motor spindle at 15,000 rpm for high‑speed finishing. All use BT40 taper with optional HSK‑A63. Torque output is 96 Newton meters for both FANUC and Mitsubishi drive systems.
