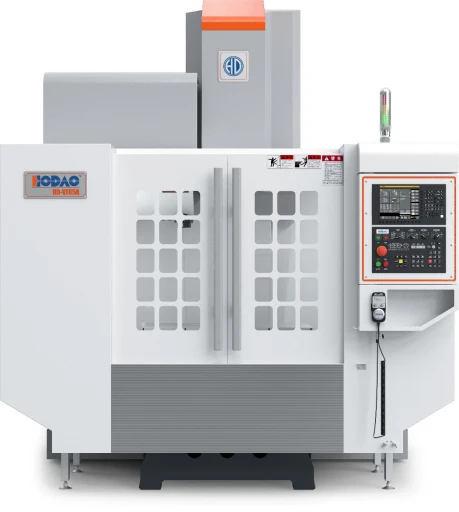

High Speed CNC Machining Center
Rigid bed and tall column give high stiffness. Spindle motor choices: FANUC 0iMF (11/15 kW, 96 Nm), Mitsubishi M80V (7.5/11/15 kW, 96 Nm), or Syntec 22MA direct (7.3/11 kW, 52.5 Nm) or belt 8000 rpm (11/15 kW, 94.6 Nm). Armless disc changer. Laser/ballbar calibration yields ±0.005/300 mm positioning, ±0.003/300 mm repeatability. Weight 5 t, dimensions 2580×2780×2950 mm.
Specifications
|
Parameter |
Unit |
HD-VF85A |
|
Machining Range |
||
|
X-axis travel (left-right) |
mm |
800 |
|
Y-axis travel (front-back) |
mm |
550 |
|
Z-axis travel (up-down) |
mm |
550 |
|
Distance from spindle nose to table surface |
mm |
120-670 |
|
Distance from spindle center to column guideway surface |
mm |
590 |
|
Worktable Specifications |
||
|
Worktable size (X*Y direction) |
mm |
1000×550 |
|
Worktable T-slot size |
mm |
18T×5×90 |
|
Max. worktable load |
kg |
400 |
|
Spindle Specifications |
||
|
Spindle taper |
spec. |
BT40 |
|
Spindle speed |
rpm |
Direct-drive 12000 / Belt 10000 |
|
Spindle motor power - torque |
spec. |
0iMF: 11/15 kW - torque 96 Nm; M80V: 7.5/11/15 kW - torque 96 Nm; 22MA direct: 7.3/11 kW - torque 52.5 Nm; 22MA belt 8000 rpm: 11/15 kW - torque 94.6 Nm |
|
Spindle bearing arrangement |
spec. |
7014×4 pieces/set; bearing ID 70 mm; ceramic balls |
|
Feed System |
||
|
G00 rapid traverse (X/Y/Z axis) |
m/min |
48/48/48 |
|
G01 cutting feed (X/Y/Z axis) |
m/min |
0-10 |
|
Three-axis ballscrew specification |
mm |
φ40×P16 |
|
Three-axis guideway specification |
spec. |
X/Y/Z: 35/45/45 type linear guideways |
|
Three-axis motor specification (X/Y/Z axis) |
spec. |
Million-pulse high-resolution servo motor; 0iMF: 1.8/1.8/3 kW; M80V: 2/2/3 kW; 22MA: 3.9/3.9/5.9 kW |
|
Tool Magazine System |
||
|
Tool magazine capacity |
pcs. |
Disc-type with tool arm 24T (optional 32T) tool magazine |
|
Machine Parameters |
||
|
Positioning accuracy |
mm |
JIS: ±0.005 / any 300 mm of travel |
|
Repeatability |
mm |
JIS: ±0.003 / any 300 mm of travel |
|
Overall dimensions (width/depth/height) |
mm |
2580×2780×2950 |
|
Approx. machine weight |
t |
5 |
Scope of Application
Works well in high‑mix, high‑volume production of boxes, plates, housings, irregular shapes. Performs precision milling, drilling, tapping, 3D contouring. Suitable for job shops and automated cells.
Equipment Manufacturing Process
Customer pours concrete slab ≥300 mm thick (no rebar) per drawing, away from vibration and temperature swings. Supplies 380V three‑phase power and clean dry air (≤100 μm). Voltage stabilizer and air dryer optional. Upon machine arrival, joint unpacking inspection. Customer does rough leveling. Our engineers then fine‑tune, calibrate, and provide one day on‑site training. Pre‑acceptance at our factory 30 days before shipment. Final acceptance at customer site: check accessories, run performance tests, verify accuracy with customer tools. Tests not possible on‑site can be done at our factory. After balance payment, anti‑rust, wooden case, ship. Engineer accompanies for final leveling and training.
About Us
Hodao CNC Technology focuses on high‑speed machining centers and vertical mills. Two factories (Suzhou 30 mu, Anhui 40 mu). Serving mold, auto, 3C, 5G, aerospace. All machines 72‑hour tested and laser‑calibrated. 12‑month warranty, lifetime service. Committed to cost‑effective, customer‑oriented solutions.
FAQ
Q1. How is operator training arranged?
A: On‑site: one day after install, basic operation and maintenance – our travel cost. Factory: up to five days after contract, programming and diagnostics – customer travel cost. Customer provides free lunch.
Q2. What does warranty cover?
A: 12 months free for defects. User damage paid. After warranty, parts + labor. Lifetime support. Ownership until full payment.
Q3. Why 48 m/min rapids on all axes?
A: Short travels (800/550/550 mm) and light moving parts allow high acceleration. Low‑friction 35/45/45 guides and tuned servos cut non‑cutting time. Great for aluminum and composites.
