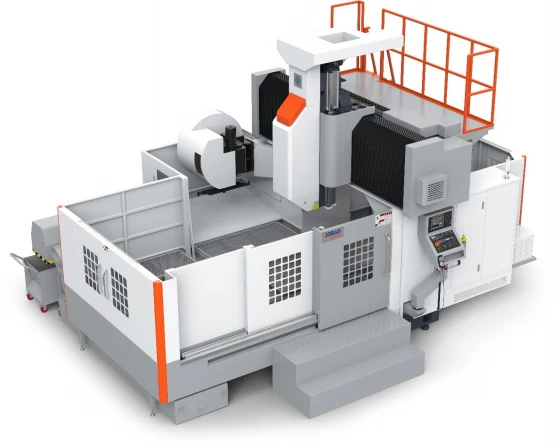

High Speed Gantry Machining Center

Fixed‑beam gantry machining center. Travels: X 2000 mm, Y 1650 mm, Z 800 mm. Table 2000×1300 mm, 4 ton load. Width through gantry 1650 mm, height 1100 mm – fits large molds, diesel housings, rail parts. BT50 belt spindle 6000 rpm, 236 Nm torque (292 Nm with optional gearbox).

Send Inquiry

Product Introduction

High‑strength low‑stress cast iron, resin sand, tempered. X/Y axes: 55‑type roller guides (X: 2 rails/6 sliders, Y: 2 rails/4 sliders). Z: heat‑treated ground box way. Heavy‑duty double‑nut C3 screws: X 63×10, Y/Z 50×10. Standard 24‑T disc magazine (optional 32T or chain). Chip removal: double screw + rear chain conveyor. Weight 21 t.

Specifications

Parameter	Unit	HD-PL2016
Machining Range
X/Y/Z axis travel	mm	2000 / 1650 / 800
Distance from spindle nose to table surface	mm	250-1050
Width through gantry	mm	1650
Height through gantry	mm	1100
Worktable Specifications
*Worktable size (XY direction)**	mm	2000×1300
Worktable T-slot size	mm	22T×7×170
Max. worktable load	t	4
Spindle Specifications
Spindle taper	spec.	BT50 short nose φ190
Spindle speed	rpm	Belt 6000
Spindle motor power - torque	spec.	0iMF/M80: 15/18.5 kW - max. torque 236 Nm; 828D: 15/19.5/22.5/30 kW - max. torque 292 Nm
Spindle bearing arrangement	spec.	7020×4 pieces/set; bearing ID 100 mm; steel balls
Drive ratio	spec.	Standard: belt pulley drive (1:1); Optional: planetary high/low range gearbox (1:1/4:1)
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	12/12/12
G01 cutting feed (X/Y/Z axis)	m/min	0-10
Three-axis ballscrew specification	mm	JIS C3 class heavy-duty double nut; X:63×P10; Y/Z:50×P10
Three-axis guideway specification	spec.	X: 55-type ×2 rails /6 sliders; Y: 55-type ×2 rails /4 sliders; Z: high-frequency heat-treated and ground box way
Three-axis motor specification (X/Y/Z axis)	spec.	Million-pulse high-resolution servo motor; 0iMF: 3/3/3 kW; M80: 4.5/4.5/4.5 kW; 828D: 5.4/5.4/5.4 kW
Z-axis counterweight method	spec.	Hydraulic balancing cylinder
Tool Magazine System
Tool magazine capacity	pcs.	Disc-type armless 24T (32T) tool magazine
Machine Parameters
Positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions	mm	6590×4650×4380
Approx. machine weight	t	21

Scope of Application

Large parts in diesel machinery, agricultural machinery, chemical, new energy, rail, automotive molds, mining, aerospace, shipbuilding, power – milling, drilling, boring, tapping.

Equipment Manufacturing Process

01/

Requirement Locking & Digital Solution

Customer provides 3D model. CAD/CAM analysis, simulate tool path and interference. Decide on gearbox, side milling head (90° or universal), or 32T magazine.

02/

Contract & MES Scheduling

Sign. Customer builds foundation (per drawing) and embeds anchor bolts. We create MES work order, track casting aging, import part arrival, shop scheduling. Customer views real‑time via platform.

03/

High‑rigidity Assembly & Accuracy

Laser tracker checks beam‑column perpendicularity. Granite straightedge adjusts straightness of 55‑type guides. Scrape Z box way and ram plastic surface for ≥18 contact points/25×25 mm. Test hydraulic balancing cylinder for ram hold during power loss. Connect double screw + chain conveyor, test chip conveying ≥5 m³/h.

04/

Factory Test & Acceptance

Run 48 h, monitor spindle vibration ≤1.0 mm/s, record repeat positioning. Test cut customer's large mold or long plate, measure Ra ≤1.6 μm. Customer onsite/video acceptance → pay balance. Vacuum rust‑proof, heavy wooden case with vibration pads, ship.

05/

Installation & Digital Delivery

Engineer onsite install, re‑calibrate, calibrate side head. Provide training and complete electronic docs (parameter backup, PLC ladder, electrical schematic, wear parts 3D). Activate remote diagnosis. Sign final acceptance → 12‑month warranty, lifetime maintenance.

About Us

Hodao CNC Technology is national high-tech enterprise focusing on high-end CNC equipment. Headquarters in Suzhou (30 mu) and branch in Anhui (40 mu), forming north-south production layout. Adheres to "technology-based, quality-oriented" philosophy. Introduces advanced processing and inspection equipment from Germany and Japan. Product line: vertical, high-speed gantry, large gantry, horizontal, drilling/tapping, engraving/milling machines. Used in precision mold, automotive, 3C, 5G, new energy, aerospace. ISO9001 certified. All machines 72h tested and laser‑compensated for sub‑micron accuracy. After-sales service in over 30 countries: 7×24 remote support, 48h on-site response. We also tailor automated production line solutions.

FAQ

Q1. Why 63 mm diameter ballscrew on X?

A: X travel 2000 mm and carries 4 t total weight. Larger diameter resists sagging and ensures rigidity. Y/Z shorter travel, lighter load → 50 mm enough.

Q2. Benefit of optional gearbox?

A: Gearbox gives high/low ranges (1:1 and 4:1). Low range boosts torque to 292 Nm for heavy cast iron/steel cuts. Standard belt torque is 236 Nm. Gearbox expands capability.

Q3. Hydraulic balancing cylinder purpose?

A: Z ram and spindle head are heavy. Cylinder offsets ~80% of weight, reducing ballscrew load and wear, improving positioning accuracy and response, extending screw life.
