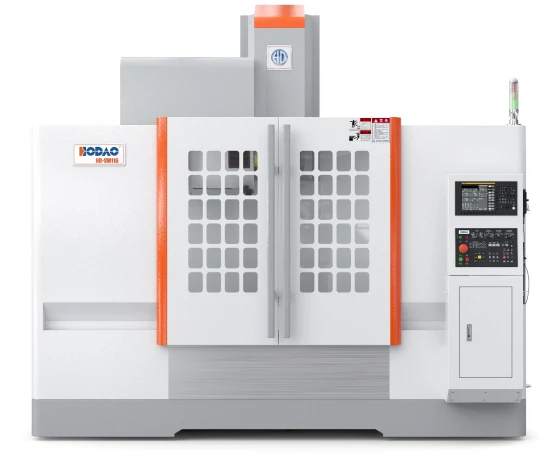

Multi-functional Vertical Machining Center

When standard machining centers are too small for certain parts, this model steps up. Consider it the heavy‑duty member of the family. X axis travels 1100 mm, Y axis 600 mm, Z axis 600 mm. Worktable measures 1200 by 640 mm and carries up to 1150 kg. Short‑nose BT40 spindle with direct drive runs at 12,000 rpm, powered by 11/15/18.5 kW motor producing 118 Nm torque. For customers producing medium‑to‑large molds, automotive components, or general engineering parts needing extra room, this machine fits the floor.

Send Inquiry

Product Introduction

Think of this as the "big brother" in the vertical machining center family. It handles larger workpieces than standard models: X travels 1100 mm, Y 600 mm, Z 600 mm. The worktable is 1200 by 640 mm and carries up to 1150 kg. A short‑nose BT40 spindle with direct drive runs at 12,000 rpm, driven by an 11/15/18.5 kW motor that produces 118 Nm of torque. If you make medium‑to‑large molds, automotive parts, or general engineering components, this machine fits your shop floor.

Specifications

Parameter	Unit	HD-VM116
Machining Range
X-axis travel (left-right)	mm	1100
Y-axis travel (front-back)	mm	600
Z-axis travel (up-down)	mm	600
Distance from spindle nose to table surface	mm	200-800
Distance from spindle center to column guideway surface	mm	674
Worktable Specifications
*Worktable size (XY direction)**	mm	1200×640
Worktable T-slot size	mm	18T×6×90
Max. worktable load	kg	1150
Spindle Specifications
Spindle taper	spec.	BT40 short nose φ160
Spindle speed	rpm	Direct-drive 12000
Spindle motor power - torque	spec.	11/15/18.5 kW - max. torque 118 Nm
Spindle bearing arrangement	spec.	Mechanical spindle: 7014×4 pieces/set; bearing ID 70 mm
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	30/30/24
G01 cutting feed (X/Y/Z axis)	m/min	0-10
Three-axis ballscrew specification	mm	JIS C3 class; 45×P10
Three-axis guideway specification	spec.	Roller: X/Y/Z 45/45/45 type linear guideways; X/Z-axis six-slider configuration
Three-axis motor specification (X/Y/Z axis)	spec.	Million-pulse high-resolution servo motor; 0iMF: 3/3/3 kW; M80: 3/3/3 kW
Tool Magazine System
Tool magazine capacity	pcs.	Disc-type with tool arm 24T (32T / 32T×2) tool magazine
Machine Parameters
Positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions (width/depth/height)	mm	3300×3070×3120
Approx. machine weight	t	7.5

Scope of Application

Boxes that barely fit smaller tables. Flat plates needing full support. Deep cavity housings. Irregular parts that need multiple setups elsewhere. High‑mix, high‑volume milling, drilling, 3D contouring.

Equipment Manufacturing Process

Machine Delivery & Site Preparation

Before the machine arrives, the customer must complete a few tasks. Pour a concrete foundation at least 300 mm thick with no steel reinforcement. Keep the installation area away from vibration sources and large temperature swings. Provide three-phase 380V power and clean, dry compressed air filtered to 100 microns. If local power or air quality is poor, a voltage stabilizer and air dryer are strongly recommended.

On-Site Process

Upon delivery, our representative and the customer conduct a joint unpacking inspection. The customer then performs rough leveling and mechanical positioning. After that, our engineers take over. We fine-tune the machine, run full Renishaw laser calibration, and provide one full day of on-site operator training. We cover our engineers' travel and accommodation.

About Us

Hodao CNC Technology operates two manufacturing bases in Suzhou (30 mu) and Anhui (40 mu). The company integrates advanced domestic and international technology to deliver cost-effective, demand-oriented machine tools and comprehensive service. All machines come with 12‑month warranty and lifetime maintenance. After-sales service includes technical support and spare parts supply.

FAQ

Q1. What training do operators get for this multi‑functional machine?

A: On‑site training (one day after installation) covers basic operation and daily maintenance. We pay travel and accommodation. Factory training (up to five days after contract signing) covers CNC programming, fault diagnosis, and machine care. The customer pays travel and accommodation. The customer provides a free working lunch for both.

Q2. How does the warranty work on a machine this size?

A: Twelve months from arrival date. Free repair for manufacturing defects. User‑caused damage (crashes, improper use, unauthorized modification) requires paid repair. After warranty, service continues with spare parts and labor charges. Lifetime maintenance support. Ownership remains with us until full payment is cleared.

Q3. What spindle options exist beyond the standard direct drive?

A: None. The HD‑VM116 comes only with the short‑nose BT40 direct drive at 12,000 rpm. Belt‑driven and motor spindle options are not available. Torque output is fixed at 118 Nm with the 11/15/18.5 kW motor. HSK‑A63 taper is not offered. This simplifies selection for customers who already know they need a larger work envelope and heavier load capacity, not higher spindle speeds.
