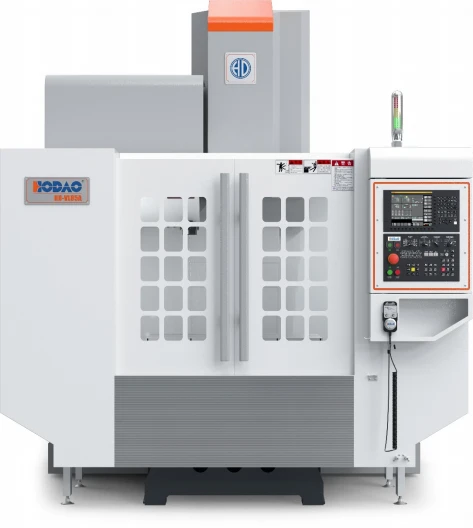

Universal Z-Axis Box Way Vertical Machining Center
High rigidity and precision transmission are integrated here. Wide base, four‑rail support (X/Y linear guides, Z box way), and a high‑torque belt spindle (short nose BT40, 8000 rpm for heavy cutting or 10000 rpm for high speed) deliver excellent vibration resistance. Spindle motor options: FANUC 0iMF (118 Nm), Mitsubishi M80V (96 Nm), or Syntec 22MA (– –). The 24‑tool disc magazine can be upgraded to 32T. Rapids: X/Y 36 m/min, Z 16 m/min (slower due to box way weight). Accuracy ±0.005/300 mm, repeatability ±0.003/300 mm. As automation advances, this machine expands its role in batch production.
Specifications
|
Parameter |
Unit |
HD-VL85A |
|
Machining Range |
||
|
X-axis travel (left-right) |
mm |
800 |
|
Y-axis travel (front-back) |
mm |
550 |
|
Z-axis travel (up-down) |
mm |
550 |
|
Distance from spindle nose to table surface |
mm |
105-655 |
|
Distance from spindle center to column guideway surface |
mm |
600 |
|
Worktable Specifications |
||
|
Worktable size (X*Y direction) |
mm |
1000×550 |
|
Worktable T-slot size |
mm |
18T×5×90 |
|
Max. worktable load |
kg |
500 |
|
Spindle Specifications |
||
|
Spindle taper |
spec. |
Short nose BT40 |
|
Spindle speed |
rpm |
Standard belt (short nose φ160-8YU) 8000 (heavy cutting); Optional belt (long nose φ150-5GT) 10000 (high speed) |
|
Spindle motor power - torque |
spec. |
0iMF: 11/15/18.5 kW - torque 118 Nm; M80V: 7.5/11/15 kW - torque 96 Nm; 22MA: 11/15 kW |
|
Spindle bearing arrangement |
spec. |
7014×5 pieces (front 3, rear 2); bearing ID 70 mm |
|
Feed System |
||
|
G00 rapid traverse (X/Y/Z axis) |
m/min |
36/36/16 |
|
G01 cutting feed (X/Y/Z axis) |
m/min |
0-10 |
|
Three-axis ballscrew specification |
mm |
JIS C3 class; 40×P12 |
|
Three-axis guideway specification |
spec. |
X/Y: 35/45 type linear guideways; Z-axis box way |
|
Three-axis motor specification (X/Y/Z axis) |
spec. |
Million-pulse high-resolution servo motor; 0iMF: 3/3/3 kW; M80V: 2/2/3 kW; 22MA: 3.9/3.9/5.9 kW |
|
Tool Magazine System |
||
|
Tool magazine capacity |
pcs. |
Disc-type armless 24T (optional 32T) tool magazine |
|
Machine Parameters |
||
|
Positioning accuracy |
mm |
JIS: ±0.005 / any 300 mm of travel |
|
Repeatability |
mm |
JIS: ±0.003 / any 300 mm of travel |
|
Overall dimensions (width/depth/height) |
mm |
2580×2740×2950 |
|
Approx. machine weight |
t |
5.3 |
Scope of Application
Automated batch machining of boxes, housings, plates, and irregular shapes, completing precision milling, drilling, rigid tapping, and 3D surfacing reliably.
Equipment Manufacturing Process
Requirement collection – Discuss drawing, material, accuracy (±0.005/300, ±0.003/300), output, automation. Technical team sets travel (X800/Y550/Z550 mm), spindle (belt 8000 or 10000 rpm), magazine (24/32T), control system (FANUC/Mitsubishi/Syntec), then outputs solution and quote.
Contract & production release – Sign contract specifying acceptance, delivery, payment. On deposit, issue production order; start casting aging, procurement, scheduling.
Component machining & assembly – Five‑side mill bed, column, other large parts.
Acceptance & delivery – Invite customer for on‑site or video pre‑acceptance using typical sample. Customer pays balance. Rust‑proof, wooden case, ship.
About Us
Hodao CNC Technology specializes in R&D, production, and sales of CNC machine tools. These are widely used in precision mold making, automotive parts, and aerospace. The company continuously innovates, integrating advanced domestic and international technologies to deliver cost‑effective, demand‑oriented machine tools and comprehensive services.
FAQ
Q1. Spindle drive and speed options?
A: Short‑nose BT40 belt drive. Two options: 8000 rpm (8YU belt, heavy cutting) for high torque; 10000 rpm (5GT belt, high speed) for finishing. Choose based on workpiece material and process.
Q2. Z‑axis guideway difference?
A: X/Y use roller linear guides (35‑type and 45‑type). Z‑axis uses a heat‑treated ground box way with plastic coating. This balances rapid movement sensitivity with heavy‑cut vibration absorption, especially for deep cavity molds.
Q3. Why is Z‑axis rapid slower?
A: X/Y rapids 36 m/min, Z only 16 m/min. Z carries the entire spindle head and counterweight block. Lower speed reduces wear and impact, extending guideway life while ensuring long‑term accuracy and stability.
Q4. What are the spindle drive and available speeds?
A: Short‑nose BT40 belt drive. Choose 8000 rpm (8YU belt, heavy cutting) for high torque or 10000 rpm (5GT belt, high speed) for finishing.
