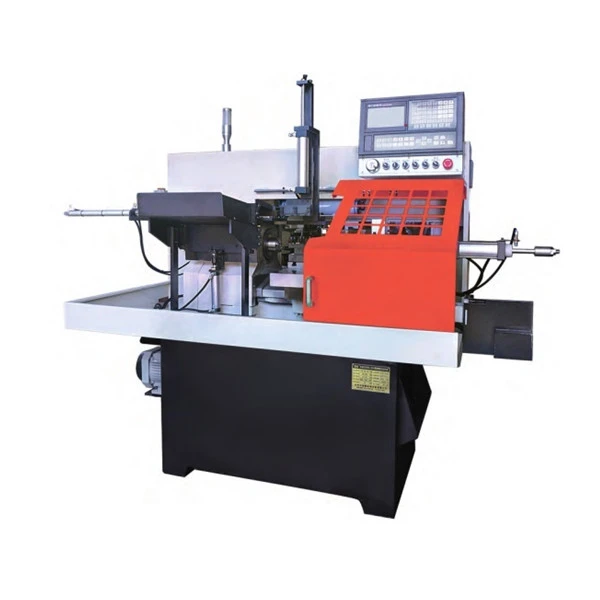

Tailstock CNC Automatic Lathe
Core advantage of tailstock CNC automatic lathe is its creative solution to industry challenge where "automated machining" and "rigid support" for slender shaft parts cannot coexist. While retaining standard automatic lathe features of fully automatic loading/unloading and continuous high-efficiency production, this machine integrates programmable precision tailstock to provide stable "double-end centering" support for workpieces with large length-to-diameter (L/D) ratio.
This not only completely eliminates vibration and tool deflection in long shaft machining, ensuring superior dimensional accuracy and surface finish, but also enables "turning + drilling" in single setup.
This equipment perfectly unifies production efficiency, machining accuracy, and economy, becoming ultimate tool for batch, unattended production of parts such as plumbing valve stems and long shafts for automotive and motorcycle applications.
Specifications
|
Model |
Model 25, Model 32, Model 50 |
|
Workpiece Length |
20-80mm (vibratory bowl feeder optional) |
|
Workpiece Diameter |
Φ4-32mm (upgradable) |
|
Workpiece Shape |
Round, square, hexagonal |
|
Feeding Method |
Front feeding |
|
Control System |
GSK CNC + PLC (Huaxing or KND optional) |
|
Guideway Type |
Hardened slideway / linear guideway |
|
Clamping Type |
3-jaw chuck / hydraulic rotary cylinder |
|
Motor Power |
2.2KW |
|
Spindle Speed |
200-3000 RPM (stepless variable speed) |
|
Power Supply |
380V 50HZ (three-phase four-wire) |
|
Working Air Pressure |
0.6-0.8Mpa |
|
X/Z-axis Rapid Traverse Speed X/Z |
8/10 m/min |
|
Maximum X/Z-axis Travel X/Z |
220/100mm |
|
Total Machine Weight |
Approx. 600kg |
|
Overall Dimensions |
1550×1050×1700 (L×W×H) |
Scope of Application
Suitable for precision automated machining of complex processes on various short shaft parts in batch production, covering outer and inner diameters, arbitrary tapered surfaces, flat end faces, spherical surfaces, grooving, and drilling.
Equipment Manufacturing Process
Requirement Alignment & Customized Solution
• In-depth process analysis: Jointly analyze product drawing, material properties, production capacity target, and automation requirement with customer. Accurately identify process core and bottleneck.
• Customized solution design: Based on mutual agreement, perform machine selection and configuration design of core components (e.g., CNC system, spindle, feeding mechanism). Develop solution including technical specification and commercial quotation.
Contract Signing & Project Kick-off
• Sign formal contract: After solution confirmation, sign formal contract clarifying technical specification, acceptance criteria, delivery schedule, payment terms, and responsibilities of both parties.
• Project launch: Upon receipt of agreed initial payment, project enters execution phase. We adhere to "payment before start" principle to ensure seriousness of resource commitment, and immediately initiate material procurement and production scheduling.
Lean Manufacturing & Process Validation
• Precision manufacturing & quality control: In standardized workshop, perform precision machining, assembly, and initial adjustment according to drawing and process. Implement strict in-process inspection to ensure quality of core components.
• In-house integrated debugging: After complete machine assembly, conduct comprehensive function, accuracy, and stability test using customer's typical workpiece (or substitute material). After meeting standards, invite customer for on-site or video pre-acceptance to jointly confirm machine performance.
Delivery, Packing & Shipping
• Delivery & packing: After customer passes pre-acceptance and shipment payment is settled, arrange professional packing and shipping with logistics tracking.
About Qiyang
Taizhou Qiyang Trading Co., Ltd. is a high-tech enterprise dedicated to the research and development, manufacturing, and sales of automated hardware machinery and precision CNC machine tools. By integrating advanced manufacturing expertise and technological resources from across the industry, the company is committed to providing global clients with high-quality machine tools and professional machining solutions.
FAQ
Q1. Can you customize machine according to our requirements?
A: Yes. We offer modular customization options, such as extended travel, larger spindle, addition of special tooling interface, etc. Please provide us with your specific requirements. Our engineer will evaluate and provide custom solution.
Q2. Can price be lower?
A: I understand your concern. Price we quoted is already fair price based on your configuration. If you can increase order quantity and pay full amount upfront, we can apply for special discount from company.
Q3. What if accuracy does not meet requirement?
A: In contract, we clearly specify that on-site acceptance test cutting of your workpiece passing standard is final criterion. If accuracy fails during acceptance, we will adjust machine until it meets contract requirement. If final adjustment still cannot satisfy requirement, you have right to return machine for full refund.
