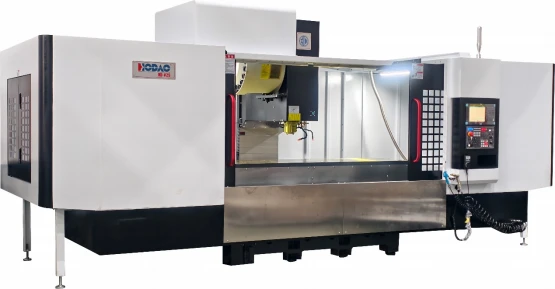

CNC Profile Machining

This machine is tailored for long workpieces such as large molds and aluminum extrusions. X‑axis travel 2500 mm, table 2600×700 mm, load 900 kg. Z‑axis direct‑drive BT40 spindle at 12,000 rpm, 11/15 kW, 96 Nm torque – balances high‑speed finishing with light to medium cutting. Y/Z rapids 36 m/min cut non‑cutting time.

Send Inquiry

Product Introduction

Reinforced bed with mountain‑rib and torque tube. X/Z 45‑type roller guides, Y 35‑type guides. C3 ballscrews: X 50×P20, Y/Z 40×P16. Standard 24‑tool disc magazine (larger optional). Rear flushing chip removal, oil cooler, cabinet AC all standard. Dimensions 5900×3900×3000 mm, weight 8.5t.

Specifications

Parameter	Unit	HD-V25
Machining Range
X-axis travel (left-right)	mm	2500
Y-axis travel (front-back)	mm	750
Z-axis travel (up-down)	mm	700
Distance from spindle nose to table surface	mm	50-750
Distance from spindle center to column guideway surface	mm	775
Worktable Specifications
*Worktable size (XY direction)**	mm	2600×700
Worktable T-slot size	mm	18T×5×135
Max. worktable load	kg	900
Spindle Specifications
Spindle taper	spec.	BT40
Spindle speed	rpm	Direct-drive 12000
Spindle motor power - torque	spec.	11/15 kW - max. torque 96 Nm
Spindle bearing arrangement	spec.	Mechanical spindle: 7014×4 pieces/set; bearing ID 70 mm
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	20/36/36
G01 cutting feed (X/Y/Z axis)	m/min	0-10
Three-axis ballscrew specification	mm	JIS C3 class; 50×P20 / 40×P16 / 40×P16
Three-axis guideway specification	spec.	Roller: X/Z 45-type linear guideways, Y-axis 35-type linear guideway
Three-axis motor specification (X/Y/Z axis)	spec.	Million-pulse high-resolution servo motor; 0iMF: 3/3/3 kW
Tool Magazine System
Tool magazine capacity	pcs.	Disc-type armless 24T tool magazine
Machine Parameters
Positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions (width/depth/height)	mm	5900×3900×3000 (rear discharge, no chip conveyor)
Approx. machine weight	t	8.5

Scope of Application

Long molds, large plates, frames – precision milling, drilling, boring, rigid tapping. Single clamping covers large area.

Equipment Manufacturing Process

01/

Tech Alignment

Customer gives drawing and accuracy (±0.005/300, ±0.003/300). We propose solution.

02/

Contract & Production

Sign, pay deposit. Start casting aging and long‑stroke part procurement.

03/

Assembly & Debug

Mount 45/35‑type guides, C3 screws, BT40 direct spindle, 24‑T magazine. Laser compensation.

04/

Acceptance & Ship

Customer test cut (onsite/video). Pay balance, wooden case, ship. On‑site install and training.

About Us

Hodao CNC Technology specializes in high-end CNC equipment. Has long-term technical cooperation with German and Japanese research institutes. Product line covers machining centers, gantry machines, and drilling/tapping centers. All machines undergo 72h continuous operation test and laser interferometer compensation to ensure sub‑micron accuracy. Global after‑sales service covers over 30 countries, offering 7×24 remote support and 48h on-site response.

FAQ

Q1. Overhang deformation for long workpiece?

A: 700 mm wide table + integral ribbed base + 45‑type large‑span guides provide enough rigidity. Support workpiece within table; add auxiliary support if needed.

Q2. Why different rapids?

A: X‑axis long travel and heavy load → 20 m/min for smooth start/stop. Y/Z shorter travel → 36 m/min for efficiency. Parameters adjustable in practice.

Q3. Add fourth axis?

A: Yes. T‑slot layout 18T×5×135 fits standard rotary tables. Need custom transition plate based on table size. Provide specs.

Hot Tags: CNC profile machining, China CNC profile machining manufacturers, suppliers, factory

No Information

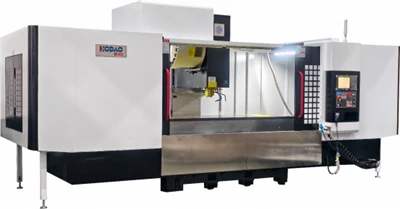

CNC Aluminum Profile Machine
