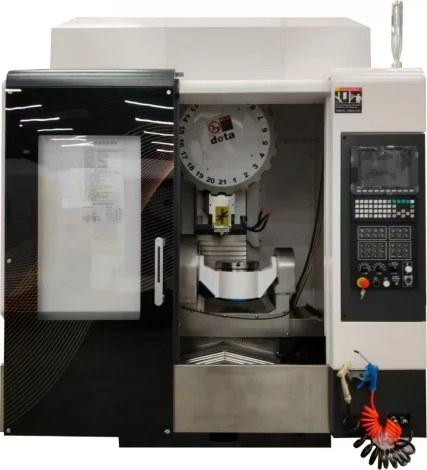

5 Axis Multi-Tasking Machining Center

This cradle‑type five‑axis machine (HD‑UT380+) targets high‑volume, high‑precision small complex parts. Travels 500/560/380 mm. Rotary table φ260 mm, 50 kg load, A/C direct drive, min. increment 0.001°. Time grating standard, positioning ±10″, repeat ±2″.

Send Inquiry

Product Introduction

High‑rigidity gantry‑type (actually moving column) with THK guides and ballscrews. BT30‑20,000 rpm spindle, oil cooled. Umbrella 21T magazine – smooth tool change. Syntec 220MA‑5 supports multi‑axis interpolation. Optional workpiece probe and tool setter enable closed‑loop machining. Power consumption only 15 kVA – energy saving.

Specifications

Parameter	Unit	HD-UT380+
Machining Range
X-axis travel (left-right)	mm	500
Y-axis travel (front-back)	mm	560
Z-axis travel (up-down)	mm	380
Distance from spindle nose to table surface	mm	60-440
Distance from spindle center to column guideway surface	mm	445
Rotary Table Specifications
Table diameter	mm	φ260
T-slot size on table surface	mm	12T×4, 360° equally spaced
Max. load	kg	50
Rotation angle	Degree	C-axis: 360°; A-axis: ±110°
Max. rotation speed	rpm	C-axis: 250; A-axis: 200
Minimum increment	Degree	0.001°
Table motor	sec	A/C axis: 3.0 kW DD motor
Scale (grating)	sec	A/C axis: time grating (standard)
Spindle Specifications
Spindle taper	spec.	BT30
Spindle speed	rpm	BT30-20000
Spindle motor power - torque	spec.	20000rpm: 5.5/7.5 kW
Spindle bearing arrangement	spec.	7008×4 pieces; bearing ID 40 mm; ceramic balls
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	30/30/30
G01 cutting feed (X/Y/Z axis)	m/min	10
Three-axis ballscrew specification	mm	THK JIS C3 class; 32×P10
Three-axis guideway specification	spec.	THK; X/Y/Z: 30/30/35 type ball linear guideways
Three-axis motor specification (X/Y/Z axis)	spec.	Million-pulse high-resolution servo motor; 220MA: 3.1/3.1/3.9 kW
Tool Magazine System
Tool magazine capacity	pcs.	Umbrella-type 21T tool magazine
Machine Parameters
Rotary table indexing accuracy	sec	C-axis: ±10″; A-axis: ±10″
Rotary table repeatability	sec	C-axis: ±2″; A-axis: ±2″
Three-axis positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Three-axis repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions (width/depth/height)	mm	1950×2655×2524
Machine total weight	t	3.7

Scope of Application

Widely used in aerospace (small blades, connectors), medical (bone plates, screws), optical molds, watch parts – industries demanding high accuracy and surface finish.

Equipment Manufacturing Process

01/

Step 1. Solution design – Recommend fixturing (three‑jaw chuck, vacuum chuck, zero‑point quick change) based on typical part. Provide DFM report and cutting parameters.

02/

Step 2. Contract and site survey – Free site survey covering temperature control, air source dryness, and grounding resistance. Customer builds foundation per drawing (thickness ≥500 mm, with anti‑vibration trench).

03/

Step 3. Core component assembly – Assemble THK ballscrews and guideways in constant‑temperature workshop (20°C). Check air gap for DD motor; preload table bearings as per specification.

04/

Step 4. Five‑axis integration and test cut – Calibrate A/C axis centerline using ballbar, perform RTCP dynamic test. Provide test‑cut part (e.g., aluminum alloy impeller) and inspection report.

05/

Step 5. Acceptance, shipment, and follow‑up service – After acceptance, pack in wooden case with moisture inhibitor and ship. Engineer installs on‑site and provides 3‑day training (including system parameter backup). Complimentary five‑axis post‑processor template (UG/PowerMill).

About Us

Hodao CNC Technology owns a five‑axis application center, offering free sample test cutting. ISO9001:2015 certified, won "Top Ten Product Quality" award three consecutive years. Key components (spindle, rotary table, guides) from Taiwan/Japan/Germany. Two‑year warranty (industry standard one year).
