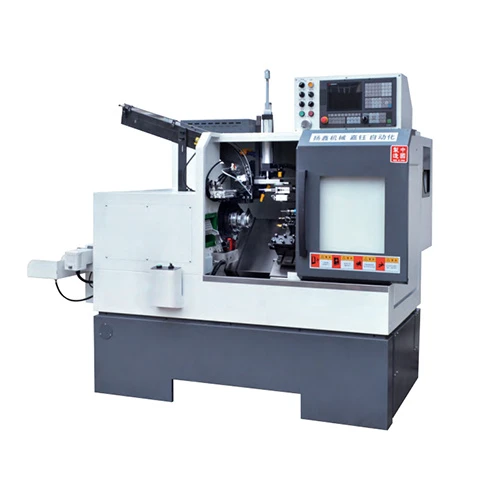

Line Rail CNC Lathe Machine
Line rail CNC lathe machine is high-precision, high-efficiency CNC machining equipment, specifically suitable for machining short shafts, stepped shafts, disc-shaped parts, and tubular components, while enabling precision automated production of complex processes.
Line rail CNC lathe machine, combined with PLC control system, achieves not only high-precision, high-efficiency, and high-stability machining, but also becomes core equipment of modern intelligent manufacturing cells through flexible automation integration capability.
It delivers outstanding performance in shortening production cycle, reducing labor dependence, improving product consistency, and integrating complex processes. It is especially suitable for high-volume or flexible automated production of small to medium-sized precision parts, serving as indispensable technical equipment in manufacturing industry transformation and upgrading.
Specifications
|
Model |
0640 |
|
Feeding Method |
Front feeding (cylinder feeding) |
|
Filling Method |
Vibratory bowl feeder (optional elevator) |
|
Discharge Method |
Parts receiver + conveyor belt |
|
Workpiece Length |
10-80mm |
|
Bed Configuration |
Integral 45° slant bed with linear guideways |
|
Control System |
CNC system + PLC |
|
Spindle Structure |
Spindle unit (front 4 + rear 2 bearings) |
|
Spindle Nose |
A2-5 |
|
Spindle Speed |
50-3500 RPM |
|
Broached Through-Hole |
Φ40 mm (max. bar stock passage diameter) |
|
Clamping Method |
Hollow rotary hydraulic cylinder |
|
Spindle Fixture |
0640 collet chuck (optional hydraulic chuck) |
|
Motor Power |
4 KW/5.5KW/7.5KW |
|
Tool Holder Type |
Gang tool post (optional servo turret) |
|
Chip Removal Method |
Rear chip discharge |
|
X/Z-axis Rapid Traverse Speed X/Z |
24m/min |
|
Maximum X/Z-axis Travel X/Z |
700mm/350mm |
|
Total Machine Weight |
Approx. 1300kg |
|
Overall Dimensions |
1850×1400×1800 (L×W×H) |
Scope of Application
Suitable for the automated, high-precision machining of complex features on short shafts, stepped shafts, disc-shaped parts, and tubular components.
Equipment Manufacturing Process
Order Intake
Customer provides drawing or product sample. Both parties communicate requirements and discuss feasibility of machining.
Machine Selection & Quotation
Select equipment based on process. Issue quotation after confirmation. Quotation must include tax-inclusive price, delivery time, payment term, and warranty scope to avoid future disputes.
Contract Signing (Legal Protection)
Sign formal contract after quotation approval. Specify acceptance criteria, delivery schedule, breach penalties, etc. If customer supplies raw material, contract must state material specification and quality responsibility (to prevent scrap dispute caused by poor material).
Deposit Collection & Production
Receive deposit (typically 30%-50%) → finance confirms receipt → workshop arranges production.
Rule: no material cutting until payment received. This is firewall against customer order cancellation.
Pre-delivery Inspection & Balance Payment Request
Final inspection of finished product → send photo/video to customer for confirmation → request balance payment.
Delivery
Arrange shipment after receiving contract balance. Transport equipment to customer designated address.
After-sales & Payment Closure Loop
Customer confirms receipt → issue invoice → archive order. Build customer file for future marketing.
About Qiyang
Taizhou Qiyang Trading Co., Ltd. is a high-tech enterprise dedicated to the research and development, manufacturing, and sales of automated hardware machinery and precision CNC machine tools. By integrating advanced manufacturing expertise and technological resources from across the industry, the company is committed to providing global clients with high-quality machine tools and professional machining solutions.
FAQ
Q1: What does first letter of machine model number represent?
A: First letter indicates machine category. For example, "C" stands for lathe, "X" stands for milling machine.
Q2: What is core of CNC machine tool?
A: CNC system (Computer Numerical Control), responsible for controlling automated machining of machine tool.
Q3: Main difference between high-precision machine tool and ordinary machine tool?
A: High-precision machine tool has higher geometric accuracy, motion accuracy, and transmission accuracy, making it suitable for precision machining.
