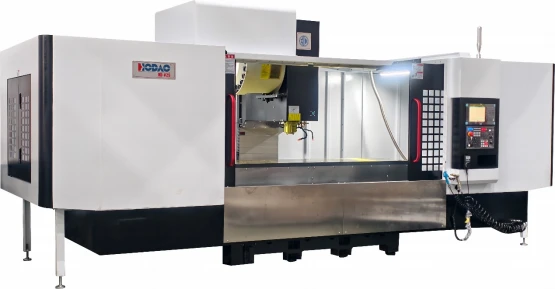

CNC Aluminum Profile Machine

Large‑stroke vertical machining center for aluminum profiles and steel parts. X 2500 mm, Y 750 mm, Z 700 mm. Table 2600×700 mm, load 900 kg. Direct‑drive BT40 spindle at 12,000 rpm, 96 Nm torque – fast for aluminum, enough for steel milling.

Send Inquiry

Product Introduction

Column torque tube + base rib reinforcement suppress vibration. Pre‑stretched ballscrews: X 50×20, Y/Z 40×16. Standard rear flush, oil cooler, cabinet AC. Optional chain magazine or auto chip conveyor. Machine size 5900×3900×3000 mm, 8.5t.

Specifications

Parameter	Unit	HD-V25
Machining Range
X-axis travel (left-right)	mm	2500
Y-axis travel (front-back)	mm	750
Z-axis travel (up-down)	mm	700
Distance from spindle nose to table surface	mm	50-750
Distance from spindle center to column guideway surface	mm	775
Worktable Specifications
*Worktable size (XY direction)**	mm	2600×700
Worktable T-slot size	mm	18T×5×135
Max. worktable load	kg	900
Spindle Specifications
Spindle taper	spec.	BT40
Spindle speed	rpm	Direct-drive 12000
Spindle motor power - torque	spec.	11/15 kW - max. torque 96 Nm
Spindle bearing arrangement	spec.	Mechanical spindle: 7014×4 pieces/set; bearing ID 70 mm
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	20/36/36
G01 cutting feed (X/Y/Z axis)	m/min	0-10
Three-axis ballscrew specification	mm	JIS C3 class; 50×P20 / 40×P16 / 40×P16
Three-axis guideway specification	spec.	Roller: X/Z 45-type linear guideways, Y-axis 35-type linear guideway
Three-axis motor specification (X/Y/Z axis)	spec.	Million-pulse high-resolution servo motor; 0iMF: 3/3/3 kW
Tool Magazine System
Tool magazine capacity	pcs.	Disc-type armless 24T tool magazine
Machine Parameters
Positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions (width/depth/height)	mm	5900×3900×3000 (rear discharge, no chip conveyor)
Approx. machine weight	t	8.5

Scope of Application

High‑volume batch machining of large aluminum profiles, long steel plates, mold bases, 5G cavities, new energy battery molds.

Equipment Manufacturing Process

01/

Preliminary Alignment

Discuss material, size, accuracy (±0.005/300, ±0.003/300), automation. Output solution and quote.

02/

Contract & Site Prep

Sign. Customer builds foundation (≥600 mm, ≥20.68 MPa), pre‑installs 380V, clean air (100 μm filter), and oils.

03/

Production & Joint Debug

Five‑side mill bed/column.Assemble 55‑type roller guides, C3 ballscrew (50×P12), BT50 belt spindle (6000 rpm), 24‑T magazine. Laser compensation and circular test.

04/

Final Acceptance & Shipment

Customer onsite/video test cut. Pay balance, rust‑proof, wooden case, ship. Engineer installs, levels, trains (1 day). Sign acceptance.

About Us

Hodao CNC Technology: two factories, ISO9001, 72h tested machines, 12-month warranty, lifetime service. Products for mold, auto, 3C, 5G, aerospace. Company continuously innovates and improves, integrating advanced domestic and international technology to provide customers with cost-effective, demand-oriented machine tools and comprehensive service.

FAQ

Q1. Remote fault diagnosis?

A: FANUC 0iMF has Ethernet port. With remote monitoring module, real‑time alarms and program transfer possible. Details in contract.

Q2. When must oil cooler and cabinet AC be used?

A: Oil cooler: run if continuous operation >4 hours or ambient >30°C – stabilizes spindle thermal displacement. Cabinet AC: mandatory in humid or dusty shops to prevent electrical shorts.

Q3. Can 700 mm high workpiece be machined?

A: Spindle nose to table: 50‑750 mm. Theoretical max height 700 mm with short holder. Longer tool reduces actual height. Leave safety margin.
