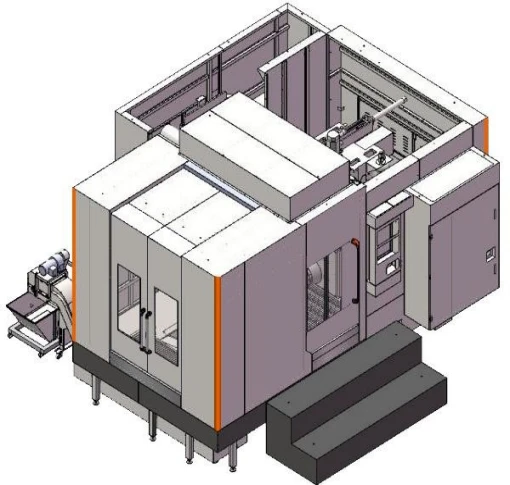

High Speed Horizontal Machining Center
High rigidity is the core: 55‑type roller guides on all three axes, C3 class ballscrews (50×P12). BT50 belt spindle: 6000 rpm, 15/18.5 kW, 236 Nm torque – powerful heavy cutting. Table 630×630 mm, load 1200kg. Magazine: 24‑tool disc (optional 40‑tool chain). Accuracy: ±0.005/300 mm positioning, ±0.003/300 mm repeatability. Weight 13.5t.
Specifications
|
Parameter |
Unit |
HD-HT630 |
|
Machining Range |
||
|
X-axis travel (moving column left-right) |
mm |
1100 |
|
Y-axis travel (spindle head up-down) |
mm |
900 |
|
Z-axis travel (worktable front-back) |
mm |
1000 |
|
Distance from spindle center to worktable surface |
mm |
100-1000 |
|
Distance from spindle end face to worktable center |
mm |
100-1100 |
|
Worktable Specifications |
||
|
Worktable indexing specification |
spec. |
1° |
|
Worktable size / max. clamping swing diameter |
mm |
630×630 / 1100 |
|
Worktable T-slot size |
mm |
18T-5×125 |
|
Max. worktable load |
kg |
1200 |
|
Spindle Specifications |
||
|
Spindle taper |
spec. |
BT50-190 |
|
Spindle speed |
rpm |
BT50 belt 6000 |
|
Spindle motor power - torque |
spec. |
15/18.5 kW - max. torque 236 Nm |
|
Feed System |
||
|
G00 rapid traverse (X/Y/Z axis) |
m/min |
20/20/20 |
|
G01 cutting feed (X/Y/Z axis) |
m/min |
0-10 |
|
Three-axis ballscrew specification (X/Y/Z axis) |
mm |
JIS C3 class; 50×P12 |
|
Three-axis guideway specification (X/Y/Z axis) |
spec. |
Roller 55-type linear guideways |
|
Three-axis motor specification (X/Y/Z axis) |
spec. |
0iMF: 3/3/3 kW; M80V: 4.5/4.5/4.5 kW |
|
Rotary table motor specification (B axis) |
spec. |
0iMF: 3 kW; M80V: 2 kW |
|
Tool Magazine System |
||
|
Tool magazine capacity |
pcs. |
Standard disc-type armless 24T; optional chain 40T |
|
Machine Parameters |
||
|
Positioning accuracy |
mm |
JIS: ±0.005 / any 300 mm of travel |
|
Repeatability |
mm |
JIS: ±0.003 / any 300 mm of travel |
|
Approx. machine total weight |
t |
13.5 |
Scope of Application
Valve bodies, pump casings, transmission housings, molds – any part needing milling, drilling, boring, tapping on multiple sides in a single setup.
Equipment Manufacturing Process
Requirement Confirmation
Agree on drawing, material, accuracy (±0.005/300, ±0.003/300), and output.
Contract & Scheduling
Sign, receive deposit, start casting aging and procurement.
Assembly & Debugging
Fit 55‑type guides, C3 screws, BT50 spindle, 24‑tool magazine. Run laser compensation and circular test.
Acceptance & Delivery
Customer does test cut (onsite or video). Pay balance, wooden case, ship. On‑site install and training.
About Us
Hodao CNC Technology is a high-tech manufacturer with 30 mu in Suzhou and 40 mu in Anhui. Annual capacity exceeds 600 units. Products include five-axis, large gantry, horizontal, and vertical machining centers. Widely used in mold, automotive, electronics, telecom, and aviation. Every machine passes 72h run-in and Renishaw laser inspection. Committed to providing cost‑effective, custom‑tailored solutions.
FAQ
Q1. Worktable indexing accuracy?
A: 1° indexing is standard, good for conventional multi‑face work. Upgrade to 0.001° indexing available (specify in order).
Q2. Rapid traverse and ballscrews?
A: X/Y/Z rapids 20/20/20 m/min, cutting feed 0‑10 m/min. Ballscrews: C3, dia. 50 mm, pitch 12 mm. Guides: 55‑type roller, excellent rigidity.
Q3. Foundation and total weight?
A: Weight ~13.5 t. Foundation: reinforced concrete ≥600 mm thick, strength ≥20.68 MPa, away from vibration. Grouted type recommended.
