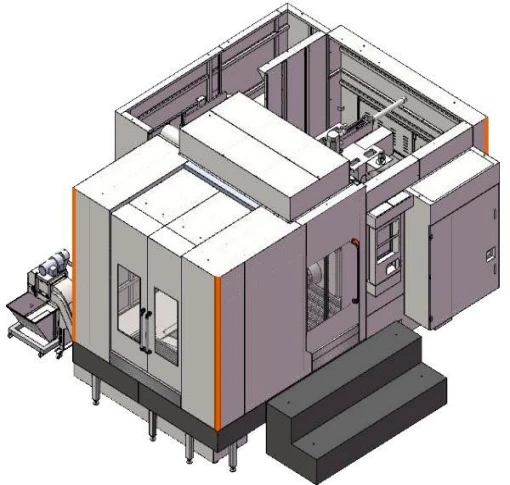

High Performance Horizontal Machining Center

This high performance horizontal machining center features a high-torque BT50 spindle (belt drive, 6000 rpm) with a maximum torque of 236 Nm, combined with three-axis 55-type roller linear guideways, enabling powerful heavy cutting of difficult-to-machine materials such as cast iron and steel. The large X/Y/Z travels (1100/900/1000 mm) accommodate medium to large workpieces.

Send Inquiry

Product Introduction

Machine adopts moving column layout. Worktable size 630×630mm, 1° indexing, load capacity 1200kg. Three-axis drive motor power is 3kW (FANUC system) or 4.5kW (Mitsubishi system). Ballscrew preload nuts eliminate backlash. Standard disc-type armless 24T tool magazine, upgradeable to chain-type 40T, meeting multi-tool requirements for complex parts. Electrical cabinet air conditioner, oil cooler, and volumetric lubrication system are all standard.

Specifications

Parameter	Unit	HD-HT630
Machining Range
X-axis travel (moving column left-right)	mm	1100
Y-axis travel (spindle head up-down)	mm	900
Z-axis travel (worktable front-back)	mm	1000
Distance from spindle center to worktable surface	mm	100-1000
Distance from spindle end face to worktable center	mm	100-1100
Worktable Specifications
Worktable indexing specification	spec.	1°
Worktable size / max. clamping swing diameter	mm	630×630 / 1100
Worktable T-slot size	mm	18T-5×125
Max. worktable load	kg	1200
Spindle Specifications
Spindle taper	spec.	BT50-190
Spindle speed	rpm	BT50 belt 6000
Spindle motor power - torque	spec.	15/18.5 kW - max. torque 236 Nm
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	20/20/20
G01 cutting feed (X/Y/Z axis)	m/min	0-10
Three-axis ballscrew specification (X/Y/Z axis)	mm	JIS C3 class; 50×P12
Three-axis guideway specification (X/Y/Z axis)	spec.	Roller 55-type linear guideways
Three-axis motor specification (X/Y/Z axis)	spec.	0iMF: 3/3/3 kW; M80V: 4.5/4.5/4.5 kW
Rotary table motor specification (B axis)	spec.	0iMF: 3 kW; M80V: 2 kW
Tool Magazine System
Tool magazine capacity	pcs.	Standard disc-type armless 24T; optional chain 40T
Machine Parameters
Positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Approx. machine total weight	t	13.5

Scope of Application

Suitable for batch machining of various box parts, housings, brackets, and mold components, capable of heavy stock removal roughing and high-precision finishing.

Equipment Manufacturing Process

01/

Alignment

Clarify workpiece material, dimensions, accuracy requirements, and level of automation.

02/

Contract and Preparation

Sign contract, customer builds foundation per drawing, pre-installs three-phase 380V power supply and clean air source.

03/

Production and Joint Debugging

Five-side machining of bed and column, assemble 55-type linear guideways, C3 ballscrew, BT50 spindle, perform laser interferometer compensation on complete machine.

04/

Final Acceptance and Shipment

After customer acceptance, pay remaining balance, apply anti-rust treatment, ship in wooden case, engineer provides on-site installation and training, sign acceptance document.

About Us

Hodao CNC Technology is a high-tech enterprise specializing in R&D, production, and sales of CNC machine tools and CNC tooling machines. Its product lineup includes vertical machining centers, high-speed gantry machining centers, large-stroke gantry machining centers, high-speed drilling and tapping machines, horizontal machining centers, engraving and milling machines, and more. These products are widely used in precision mold manufacturing, automotive parts, 3C electronics, 5G communications, precision part processing, and the aerospace industry. The company continuously innovates and improves, integrating advanced domestic and international technologies to provide customers with cost-effective, demand-driven machine tools and comprehensive services.

FAQ

Q1. What advantage does optional chain tool magazine (40T) have over standard disc tool magazine?

A: Chain tool magazine has larger capacity (40T), can store more types of tools, reduces frequent tool changes and manual intervention, suitable for automated machining of complex parts requiring multiple processes and many tools.

Q2. Is spindle oil cooler and electrical cabinet air conditioner standard?

A: Yes. Spindle oil cooler is standard, effectively suppressing thermal growth and ensuring long-term machining accuracy. Electrical cabinet air conditioner keeps electrical components at constant temperature, preventing dust and oil mist from entering.

Q3. What consumables does customer need to prepare for installation and commissioning?

A: Prepare hydraulic oil (ISO VG32 for winter / VG46 for summer), guideway oil (ISO VG68), spindle oil (P-5), as well as cable (YJV 4×14mm²) and air source with filtration accuracy 100μm. Recommended oil brand is "Chuan Yi".

Q4. For box-type parts requiring multi-face machining, what are the core advantages of horizontal machining center compared to vertical type?

A: Horizontal machining center has worktable that rotates horizontally (1° indexing), completing milling, drilling, and boring on multiple faces in single clamping, reducing repeat positioning error. Additionally, chips fall naturally by gravity, making chip removal smoother, suitable for batch production of deep cavity and complex box-type parts.
