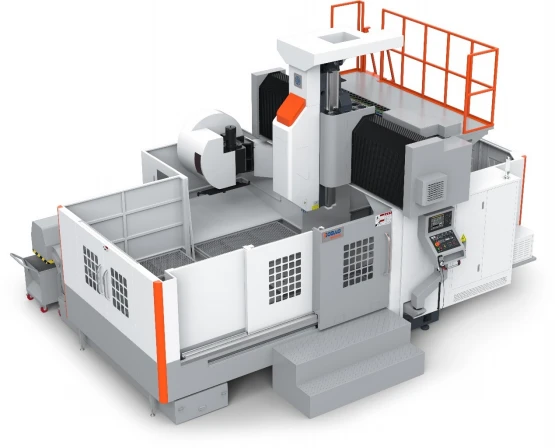

High Precision Gantry Machining Center
Whole machine adopts fixed beam gantry configuration. X/Y axes use 55-type roller linear guideways (P precision class). Z axis uses high-hardness ground box way (with PTFE coating). Ballscrews are C3 class heavy-duty double-nut type, pre-stretched to eliminate thermal deformation. Standard disc-type armless 24T tool magazine, optional 32T. Chip removal system is double screw + chain plate type. Coolant is standard rear flushing. Spindle oil cooler, electrical cabinet air conditioner, and automatic centralized lubrication are all standard. Optional high/low range gearbox expands cutting range.
Specifications
|
Parameter |
Unit |
HD-PL2016 |
|
Machining Range |
||
|
X/Y/Z axis travel |
mm |
2000 / 1650 / 800 |
|
Distance from spindle nose to table surface |
mm |
250-1050 |
|
Width through gantry |
mm |
1650 |
|
Height through gantry |
mm |
1100 |
|
Worktable Specifications |
||
|
Worktable size (X*Y direction) |
mm |
2000×1300 |
|
Worktable T-slot size |
mm |
22T×7×170 |
|
Max. worktable load |
t |
4 |
|
Spindle Specifications |
||
|
Spindle taper |
spec. |
BT50 short nose φ190 |
|
Spindle speed |
rpm |
Belt 6000 |
|
Spindle motor power - torque |
spec. |
0iMF/M80: 15/18.5 kW - max. torque 236 Nm; 828D: 15/19.5/22.5/30 kW - max. torque 292 Nm |
|
Spindle bearing arrangement |
spec. |
7020×4 pieces/set; bearing ID 100 mm; steel balls |
|
Drive ratio |
spec. |
Standard: belt pulley drive (1:1); Optional: planetary high/low range gearbox (1:1/4:1) |
|
Feed System |
||
|
G00 rapid traverse (X/Y/Z axis) |
m/min |
12/12/12 |
|
G01 cutting feed (X/Y/Z axis) |
m/min |
0-10 |
|
Three-axis ballscrew specification |
mm |
JIS C3 class heavy-duty double nut; X:63×P10; Y/Z:50×P10 |
|
Three-axis guideway specification |
spec. |
X: 55-type ×2 rails /6 sliders; Y: 55-type ×2 rails /4 sliders; Z: high-frequency heat-treated and ground box way |
|
Three-axis motor specification (X/Y/Z axis) |
spec. |
Million-pulse high-resolution servo motor; 0iMF: 3/3/3 kW; M80: 4.5/4.5/4.5 kW; 828D: 5.4/5.4/5.4 kW |
|
Z-axis counterweight method |
spec. |
Hydraulic balancing cylinder |
|
Tool Magazine System |
||
|
Tool magazine capacity |
pcs. |
Disc-type armless 24T (32T) tool magazine |
|
Machine Parameters |
||
|
Positioning accuracy |
mm |
JIS: ±0.005 / any 300 mm of travel |
|
Repeatability |
mm |
JIS: ±0.003 / any 300 mm of travel |
|
Overall dimensions |
mm |
6590×4650×4380 |
|
Approx. machine weight |
t |
21 |
Scope of Application
Widely used in industries such as large precision molds, aerospace structural components, new energy vehicle battery trays, wind power equipment, and heavy machinery parts, capable of completing full process from roughing to finishing.
Equipment Manufacturing Process
Communication and confirmation: Customer provides machining requirements. Our side recommends configuration (control system, tool magazine capacity, optional gearbox or side milling head) based on material, dimension, and accuracy.
Contract signing and material preparation: Both parties sign contract. After receiving deposit, start casting tempering and long-lead imported component procurement (ballscrews, guideways, bearings, etc.).
Assembly and inspection: Machine large parts per drawing. Assemble linear guideways, ballscrews, spindle, tool magazine. Use laser interferometer and ballbar for accuracy compensation. Perform 72-hour continuous no-load operation test.
Acceptance and shipment: After pre-acceptance (customer visits factory or video) passes, customer pays remaining balance. Pack and ship machine. Provide on-site installation and commissioning, offer programming and maintenance training (1 day), deliver random documentation (paper accuracy chart, electronic manual).
About Us
We are Hodao CNC Technology with two factories in Suzhou (30 mu) and Anhui (40 mu).Every machine we ship has run 72 hours non‑stop and passed a Renishaw laser test before it leaves our door. What do we make? Vertical, gantry, horizontal, drill‑tap centers, and engraving machines. Who uses them? Mold shops, auto parts makers, 3C and 5G producers, aerospace suppliers. Need a machine that just works? We offer 12 months warranty and lifetime advice. No fuss. Just reliable CNC equipment.
FAQ
Q1. What are differences between three CNC systems (FANUC, Mitsubishi, Siemens)? How to choose?
A: FANUC 0iMF and Mitsubishi M80V belong to Japanese series, similar operation logic, high cost-effectiveness, suitable for mold and general machining. Siemens 828D offers more flexible programming for complex contours and five-axis linkage, suitable for high-end applications like aerospace. Specific recommendation can be made based on user preference and process requirements.
Q2. Machine total weight is 21 tons. What are requirements for factory floor load capacity?
A: Recommended concrete floor thickness ≥300mm, with load capacity not less than 5t/m². Machine installation requires independent foundation (per foundation drawing), with anti-vibration trenches around. Civil engineer evaluation required before installation.
Q3. Standard tool magazine is 24T. Will tool change time increase when optional 32T is selected?
A: Tool magazine capacity increases, but tool change mechanism remains disc-type armless type. Adjacent tool change time remains essentially unchanged (about 3-5 seconds). Non-adjacent tool positions have slightly increased time (about 0.5-1 second) due to larger rotation angle of tool disc, which has little effect on overall cycle time.
