5 Axis High Speed Machining Center

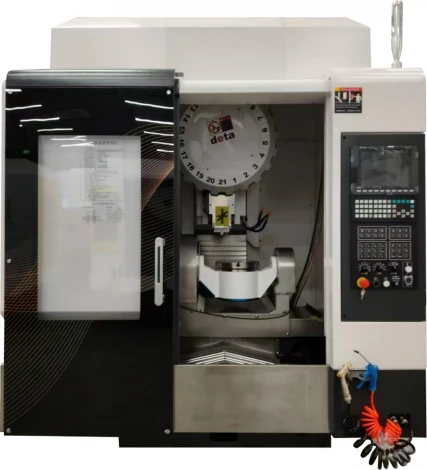

HD‑UT380+ is a cradle‑type five‑axis machining center built for compact, high‑precision machining of small, complex parts. Its work envelope accommodates modest‑sized components, with a rotary table that supports light to medium loads. The A‑axis provides ample tilt range while the C‑axis offers full continuous rotation. High‑resolution feedback ensures excellent positioning and repeatability. A high‑speed BT30 spindle delivers the power needed for efficient material removal in demanding five‑axis applications.

Send Inquiry

Product Introduction

Compact, rigid base with multi‑layer ribs. THK ball guides, pre‑stretched screws. DD table (zero backlash) + time grating (±2″). 21T umbrella magazine (optional extra). M‑code for auto door/robot. Example: blade machining 40% faster than 3‑axis.

Specifications

Parameter	Unit	HD-UT380+
Machining Range
X-axis travel (left-right)	mm	500
Y-axis travel (front-back)	mm	560
Z-axis travel (up-down)	mm	380
Distance from spindle nose to table surface	mm	60-440
Distance from spindle center to column guideway surface	mm	445
Rotary Table Specifications
Table diameter	mm	φ260
T-slot size on table surface	mm	12T×4, 360° equally spaced
Max. load	kg	50
Rotation angle	Degree	C-axis: 360°; A-axis: ±110°
Max. rotation speed	rpm	C-axis: 250; A-axis: 200
Minimum increment	Degree	0.001°
Table motor	sec	A/C axis: 3.0 kW DD motor
Scale (grating)	sec	A/C axis: time grating (standard)
Spindle Specifications
Spindle taper	spec.	BT30
Spindle speed	rpm	BT30-20000
Spindle motor power - torque	spec.	20000rpm: 5.5/7.5 kW
Spindle bearing arrangement	spec.	7008×4 pieces; bearing ID 40 mm; ceramic balls
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	30/30/30
G01 cutting feed (X/Y/Z axis)	m/min	10
Three-axis ballscrew specification	mm	THK JIS C3 class; 32×P10
Three-axis guideway specification	spec.	THK; X/Y/Z: 30/30/35 type ball linear guideways
Three-axis motor specification (X/Y/Z axis)	spec.	Million-pulse high-resolution servo motor; 220MA: 3.1/3.1/3.9 kW
Tool Magazine System
Tool magazine capacity	pcs.	Umbrella-type 21T tool magazine
Machine Parameters
Rotary table indexing accuracy	sec	C-axis: ±10″; A-axis: ±10″
Rotary table repeatability	sec	C-axis: ±2″; A-axis: ±2″
Three-axis positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Three-axis repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions (width/depth/height)	mm	1950×2655×2524
Machine total weight	t	3.7

Scope of Application

Small‑batch, many‑variety parts: drone frames, robot joints, precision valves, irregular screws. Use zero‑point quick‑change fixture.

Equipment Manufacturing Process

01/

Gather part data, output, changeover frequency. Offer automation (FANUC CRX or gantry).

02/

Customer pre‑embeds cables/air lines. Independent foundation 400 mm + isolators.

03/

Assemble in 20°C shop. Ballbar roundness, laser linear axes. Write time grating to drive. 72h burn‑in.

04/

Optional auto door + gripper. Simulate unmanned flow (load → machine → unload → inspect).

05/

On‑site cell acceptance. Ship. 1‑year warranty + remote monitoring (opt). Engineer 3 days. Free wear parts: seals, spring, cleaning kit.

About Us

Hodao CNC Technology – five‑axis & automation line supplier, >50 cells delivered. In‑house post‑processing team. All machines tested -5℃ to 40℃ before shipment.

FAQ

Q1. Will the rotary table slide when power is off?

A: A‑axis motor has an electromagnetic brake – locks automatically. Do not force rotate when off to avoid brake damage.

Q2. Can I use a regular BT30 holder?

A: Yes, but balanced holder (G2.5) is strongly recommended; otherwise high‑speed vibration hurts surface finish.

Q3. Does the machine support on‑line measurement?

A: Yes. Optional probe can be called via macro program for workpiece alignment, size compensation, tool breakage detection. We provide standard measurement cycles.
