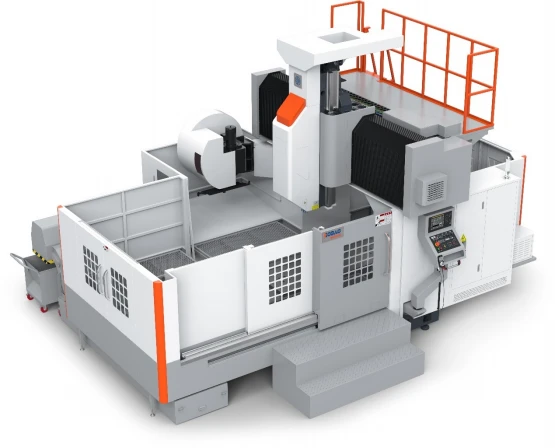

Large Gantry CNC Machining Center

This Large Gantry CNC Machining Center is CNC fixed beam gantry boring and milling machine. Three axes (X, Y, Z) can both position automatically and interpolate, completing milling, drilling, boring, reaming, tapping, and other processes. X/Y/Z travel is 2000/1650/800mm, height through gantry is 1100mm, worktable width is 1300mm, load capacity is 4 tons. Spindle is BT50 belt drive 6000rpm. Optional planetary gearbox (high/low range) or additional side milling head and universal head can achieve multi-face machining.

Send Inquiry

Product Introduction

FEM finite element analysis optimizes rib plate layout. Bed, column, beam, and other large components are high-strength cast iron with tempering treatment. X/Y axes use 55-type roller linear guideways (precision class). Z axis uses box way with PTFE coating. Three-axis ballscrews use C3 class heavy-duty double-nut preloading to eliminate backlash. Standard 24T disc-type armless tool magazine, optional 32T. Hydraulic system handles spindle unclamping and ram balancing. Electrical cabinet air conditioner, oil cooler, and automatic lubrication station are all standard. Optional manual side milling head or universal head allows machining of workpiece sides and inclined surfaces, expanding gantry machine flexibility.

Specifications

Parameter	Unit	HD-PL2016
Machining Range
X/Y/Z axis travel	mm	2000 / 1650 / 800
Distance from spindle nose to table surface	mm	250-1050
Width through gantry	mm	1650
Height through gantry	mm	1100
Worktable Specifications
*Worktable size (XY direction)**	mm	2000×1300
Worktable T-slot size	mm	22T×7×170
Max. worktable load	t	4
Spindle Specifications
Spindle taper	spec.	BT50 short nose φ190
Spindle speed	rpm	Belt 6000
Spindle motor power - torque	spec.	0iMF/M80: 15/18.5 kW - max. torque 236 Nm; 828D: 15/19.5/22.5/30 kW - max. torque 292 Nm
Spindle bearing arrangement	spec.	7020×4 pieces/set; bearing ID 100 mm; steel balls
Drive ratio	spec.	Standard: belt pulley drive (1:1); Optional: planetary high/low range gearbox (1:1/4:1)
Feed System
G00 rapid traverse (X/Y/Z axis)	m/min	12/12/12
G01 cutting feed (X/Y/Z axis)	m/min	0-10
Three-axis ballscrew specification	mm	JIS C3 class heavy-duty double nut; X:63×P10; Y/Z:50×P10
Three-axis guideway specification	spec.	X: 55-type ×2 rails /6 sliders; Y: 55-type ×2 rails /4 sliders; Z: high-frequency heat-treated and ground box way
Three-axis motor specification (X/Y/Z axis)	spec.	Million-pulse high-resolution servo motor; 0iMF: 3/3/3 kW; M80: 4.5/4.5/4.5 kW; 828D: 5.4/5.4/5.4 kW
Z-axis counterweight method	spec.	Hydraulic balancing cylinder
Tool Magazine System
Tool magazine capacity	pcs.	Disc-type armless 24T (32T) tool magazine
Machine Parameters
Positioning accuracy	mm	JIS: ±0.005 / any 300 mm of travel
Repeatability	mm	JIS: ±0.003 / any 300 mm of travel
Overall dimensions	mm	6590×4650×4380
Approx. machine weight	t	21

Scope of Application

Particularly suitable for complex large parts requiring multi-face machining, such as turbine housings, metallurgical equipment frames, military missile launchers, ship engine bases, etc., also suitable for deep cavity mold machining.

Equipment Manufacturing Process

01/

Selection and alignment: Clarify workpiece material, dimensions, accuracy (positioning ±0.005/300mm, repeatability ±0.003/300mm), and whether side milling head or gearbox is needed.

02/

Contract and foundation: Sign contract. Customer builds foundation per drawing (grouting type recommended), pre-installs power supply, air source, hydraulic oil, etc.

03/

Manufacturing and debugging: Casting aging → five-side machining → assemble linear guideways / ballscrews / spindle / tool magazine → laser interferometer compensation → circular test → optional accessory installation and debugging.

04/

Delivery and training: After customer pre-acceptance passes, pay remaining balance and ship. Engineer arrives on-site for installation, calibration, and operator training (1 day), and provides random documentation (accuracy chart, system manual, etc.).

About Us

Hodao CNC Technology is high-tech enterprise specializing in R&D, production, and sales of CNC machine tools and CNC tooling machines. Company product line includes vertical machining center, high-speed gantry machining center, large-stroke gantry machining center, high-speed drilling and tapping machine, horizontal machining center, engraving and milling machine, etc. Products are widely used in precision mold manufacturing, automotive parts, 3C electronics, 5G communication, precision part processing, and aerospace industries. Company continuously innovates and improves, integrating advanced domestic and international technology to provide customers with cost-effective, demand-oriented machine tools and comprehensive service.

FAQ

Q1. After selecting optional manual side milling head (90 degree) or universal head, how to ensure accuracy?

A: Side milling head is positioned through spindle flange. Its own accuracy (perpendicularity, coaxiality) is calibrated with dial gauge before shipment. During use, compensate tool length and radius in program. For high precision requirements, test cut sample workpiece first for verification.

Q2. What oil needs regular replacement in machine hydraulic system?

A: Hydraulic station uses ISO VG32 (winter) or VG46 (summer). Replace after first 3 months of use, then every 6 months thereafter. Spindle oil temperature system uses P-5 spindle oil. Guideway and ballscrew use ISO VG68 guideway oil.

Q3. How does gantry machining center avoid vibration during heavy cutting?

A: Base adopts extra-wide design, column bottom span is widened, and X/Y axis guideways have large number of sliders (X-axis 6 sliders, Y-axis 4 sliders). Z-axis box way cooperates with plastic-coated surface, all effectively suppressing vibration. Additionally, it is recommended to place workpiece evenly on worktable, avoiding overhang.
